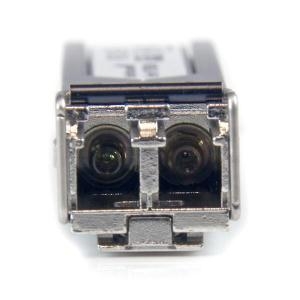

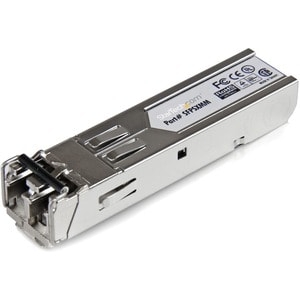

Startech Gigabit 850nm Multi Mode Sfp Fiber Optical Transceiver - Lc 550m Sfpsxmm
Add, replace or upgrade SFP modules on gigabit fiber equipment. The SFPSXMM Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to increase performance and connectivity of your fiber-connected network devices.Using a short wavelength (850nm) VCSEL laser diode, enabling a maximum cable distance of 550m (0.3 miles) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA compliant SFP port, providing a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot.Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
| Environmental | |
| Humidity | 5 to 95% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
| Hardware | |
| Compatible Brand | MSA Compliant |
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Performance | |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| DDM | No |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1.25 Gbps |
| MTBF | 78,286 hours |
| Wavelength | 850nm |
| Physical Characteristics | |
| Product Height | 9 mm [0.4 in] |
| Product Length | 55 mm [2.2 in] |
| Product Weight | 0 kg [0 lb] |
| Product Width | 13 mm [0.5 in] |
| What's in the Box | |
| Included in Package | SFP Multimode LC Transceiver |
The SFPSXMM Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to increase performance and connectivity of your fiber-connected network devices.
Using a short wavelength (850nm) VCSEL laser diode, enabling a maximum cable distance of 550m (0.3 miles) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA compliant SFP port, providing a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.
Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
