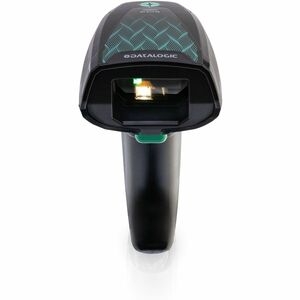

Gryphon I GD4620 Kit 2D High Density Single-sensor 5VDC USB-only Black (Kit Includes Scanner And USB Cable 90A052258) GD4620-BKK1-HD
SKU
440347
Brand
MPN
GD4620-BKK1-HD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$243.00
Buy Now And Earn 243 Reward Points!
Premium handheld scanners for corded or cordless value added applications using 2D barcodes | LCA AND ECODESIGN TO REDUCE CARBON FOOTPRINT
The Gryphon 4600 scanner series has been designed with an Ecodesign LCAbased approach, focused on reducing environmental impact through optimized energy efficiency, the use of recycled materials, minimized packaging volume and weight, and increased product durability.
AI BARCODE NEURAL DECODING
A powerful combination of a high-speed dual-core processor, AI-driven algorithms, and advanced neural network-based decoding technology delivers a significant boost in scanning performance. It enables faster decoding of both 1D and 2D barcodes, improves the readability of damaged, poorly printed, or distorted codes, and enhances performance when scanning on shiny, reflective, or curved surfaces.
EASY TO USE, INTUITIVE SCANNING
The Gryphon 4600 scanner delivers an unbeatable scanning experience thanks to the highly visible green central cross LED aimer for easier targeted scanning. Datalogic's 'Green Spot' technology, exclusive 3GLâ„¢ (3 Green Lights) and Vibration provide superior good-read feedback. The dual-color LED illumination technology, featuring warm white and red light user-selectable, allows to adapt to any application need on the fly.
FROM NEAR TO FAR, FAST READING
The Gryphon 4600 scanner delivers snappy reading performance on all common 1D and 2D codes, including GS1 Digital Link and Digital Watermarking, as well as smaller, high density, high resolution condensed codes and it also excels at reading barcodes from mobile devices. The dual-sensor optics powering the HP models deliver unprecedented capability to read codes from near to far distances, while the improved motion tolerance allows first pass decoding of fast-moving codes.
WIRELESS COMMUNICATIONS AND WIRELESS CHARGING
The Gryphon 4600 wireless solutions offers both Bluetooth 5.2 classic and low energy (BLE) wireless technology and Datalogic's STAR Cordless System (433/915 MHz radio frequencies). The recharge capability through an inductive charging system eliminates the need for contact cleaning and maintenance. This reliable wireless charging technology ensures 24/7 operation with no interruptions for maintenance or repair, maximizing productivity and performance.
BATTERY AND SUPERCAP POWER PACKS, LONG LASTING
The Gryphon 4600 wireless scanners can exploit both high-capacity LI-Ion battery pack or SuperCapacitor pack (battery free) providing fast charge and long lasting and for outstanding operating experience.
The Gryphon 4600 scanner series has been designed with an Ecodesign LCAbased approach, focused on reducing environmental impact through optimized energy efficiency, the use of recycled materials, minimized packaging volume and weight, and increased product durability.
AI BARCODE NEURAL DECODING
A powerful combination of a high-speed dual-core processor, AI-driven algorithms, and advanced neural network-based decoding technology delivers a significant boost in scanning performance. It enables faster decoding of both 1D and 2D barcodes, improves the readability of damaged, poorly printed, or distorted codes, and enhances performance when scanning on shiny, reflective, or curved surfaces.
EASY TO USE, INTUITIVE SCANNING
The Gryphon 4600 scanner delivers an unbeatable scanning experience thanks to the highly visible green central cross LED aimer for easier targeted scanning. Datalogic's 'Green Spot' technology, exclusive 3GLâ„¢ (3 Green Lights) and Vibration provide superior good-read feedback. The dual-color LED illumination technology, featuring warm white and red light user-selectable, allows to adapt to any application need on the fly.
FROM NEAR TO FAR, FAST READING
The Gryphon 4600 scanner delivers snappy reading performance on all common 1D and 2D codes, including GS1 Digital Link and Digital Watermarking, as well as smaller, high density, high resolution condensed codes and it also excels at reading barcodes from mobile devices. The dual-sensor optics powering the HP models deliver unprecedented capability to read codes from near to far distances, while the improved motion tolerance allows first pass decoding of fast-moving codes.
WIRELESS COMMUNICATIONS AND WIRELESS CHARGING
The Gryphon 4600 wireless solutions offers both Bluetooth 5.2 classic and low energy (BLE) wireless technology and Datalogic's STAR Cordless System (433/915 MHz radio frequencies). The recharge capability through an inductive charging system eliminates the need for contact cleaning and maintenance. This reliable wireless charging technology ensures 24/7 operation with no interruptions for maintenance or repair, maximizing productivity and performance.
BATTERY AND SUPERCAP POWER PACKS, LONG LASTING
The Gryphon 4600 wireless scanners can exploit both high-capacity LI-Ion battery pack or SuperCapacitor pack (battery free) providing fast charge and long lasting and for outstanding operating experience.
| Application/Usage | Transportation, Healthcare, Entertainment, Commercial Service, Laboratory, Retail, Pharmacy, Manufacturing |
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Limited Warranty | 5 Year |
| Connectivity Technology | Cable |
| Form Factor | Handheld |
| Brand Name | Datalogic |
| Scanning Distance | 1.25 m |
| Light Source | LED |
| Scanner Range | High Density |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Product Family | Gryphon 4600 |
| Product Color | Black |
| Color Family | Black |
| Ingress Protection (IP) Rating | IP52 |
| Cable Type Included | USB |
| Scanning Capability | 2D, 1D |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Eurasian Economic Union Restriction of Hazardous Substances (EAEU RoHS) |
| AI-powered | Yes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3250 mAh |
| Maximum Battery Recharge Time | 3.50 Hour |
| Manufacturer Part Number | GD4620-BKK1-HD |
| Manufacturer Website Address | http://www.datalogic.com |
| Manufacturer | Datalogic S.p.A |
| Product Model | GD4620 |
| Product Name | Gryphon GD4620 Barcode Scanner Kit |
| Product Line | Gryphon |
| Product Series | 4600 |
| Package Contents | • Gryphon GD4620 Barcode Scanner • USB Cable |
| Weight (Approximate) | 144 g |
| Durability | Drop Resistant |
| Product Material | Plastic |
| Barcode Symbology Supported | 1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes: • Aztec Code • China Han Xin Code • Data Matrix • MaxiCode • Micro QR Code • QR Code • Dot Code • GS1 Digital Link Postal Codes: • Australian Post • British Post • China Post • IMB • Japanese Post • KIX Post • Planet Code • Postnet • Royal Mail Code (RM4SCC) Stacked Codes: • EAN/JAN Composites • GS1 DataBar Composites • GS1 DataBar Expanded Stacked • GS1 DataBar Stacked • GS1 DataBar Stacked Omnidirectional • MacroPDF • MicroPDF417 • PDF417 • UPC A/E Composites Digital Watermarking: • Digimarc Barcodes OCR: • OCR-A • OCR-B • MICR |
| Features | Notification LED, Vibration, Beep |
| Image Formats | BMP, JPEG, TIFF |
| Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| Depth of Field | Label size, printing resolution, contrast, and ambient light dependent. (*) Minimum distance determined by symbol length and scan angle. |
| Illumination Type | LED |
| Illumination Color | Hyper Red/Warm White |
| Reading Angle (Skew) | 65° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 110000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 0.08 mm |
| Maximum Element Resolution (Code 39) | 0.51 mm |
| Minimum Element Resolution (DataMatrix) | 0.13 mm |
| Maximum Element Resolution (DataMatrix) | 0.25 mm |
| Minimum Element Resolution (PDF417) | 0.13 mm |
| Maximum Element Resolution (PDF417) | 0.25 mm |
| Air Electrostatic Discharge (+/-) | 16kV |
| Shipping Dimensions | Height 7.5, Width 9, Length 20, Shipping Weight 0.3 KG |
Gryphon I GD4620 Kit 2D High Density Single-sensor 5VDC USB-only Black (Kit includes Scanner and USB Cable 90A052258)
