DESCRIPTION

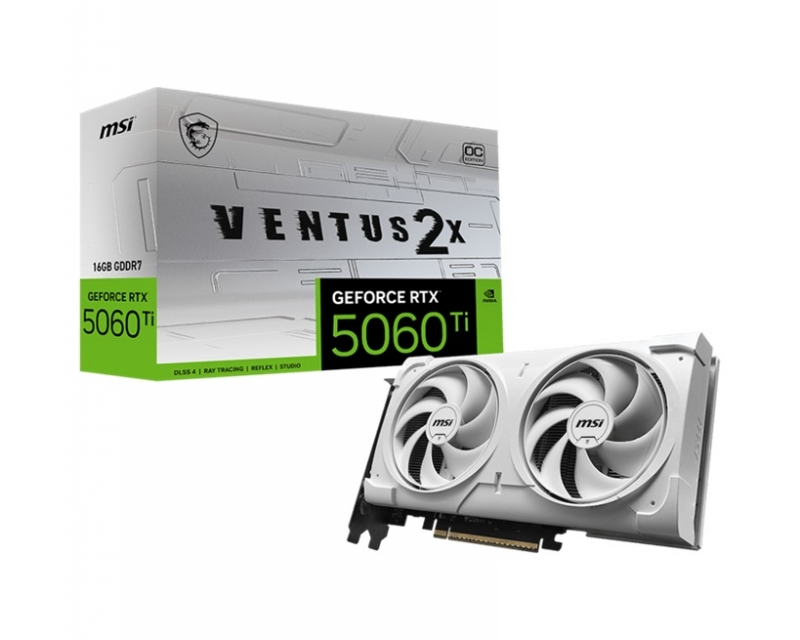

MSI nVidia GeForce RTX™ 5060 Ti 16G VENTUS 2X OC WHITE PLUS, Boost 2602 MHz, CUDA 4608, 16GB GDDR7, 28 Gbps, 600W PSU, HDMI™ x 1 (embargo)

SPECIFICATION

Marketing Name
GeForce RTX™ 5060 Ti 16G VENTUS 2X OC WHITE PLUS

Model Name
G506T16V2CWP

Graphics Processing Unit
NVIDIA® GeForce RTX™ 5060 Ti

Interface
PCI Express® Gen 5 x16 (uses x8)

Core Clocks
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz

CUDA® CORES
4608 Units

Memory Speed
28 Gbps

Memory
16GB GDDR7

Memory Bus
128-bit

Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support
Y

Power consumption
180 W

Power connectors
8-pin x1

Recommended PSU
600 W

Card Dimension (mm)
227 x 126 x 41 mm

Weight (Card / Package)
600 g / 862 g

DirectX Version Support
12 Ultimate

OpenGL Version Support
4.6

Maximum Displays
4

G-SYNC® technology
Y

Digital Maximum Resolution
7680 x 4320
