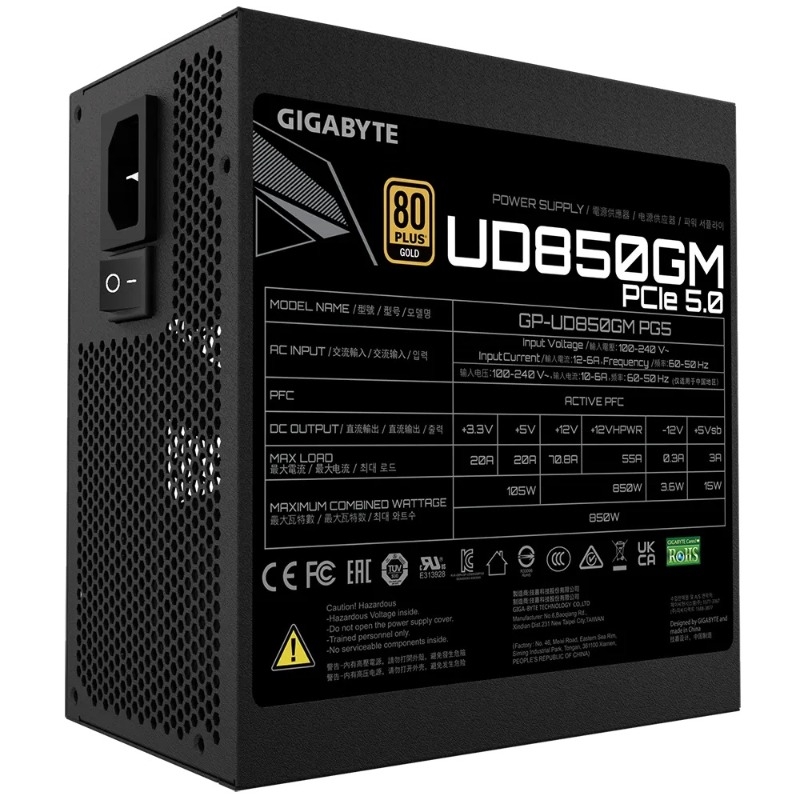

Gigabyte GP-UD850GM PG5ATX PSU: 850W 80+ Gold >90% Black Flat Cables, 12V Rail + 12VHPWR, Japanese Main Capacitors, Full Modular
SKU
426146
Brand
MPN
GP-UD850GM PG5
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$176.00
Buy Now And Earn 176 Reward Points!
-
ModelGP-UD850GM PG5
-
TypeIntel Form Factor ATX 12V
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current12-6A
-
Input Frequency60-50 Hz
-
Output Capacity850W
-
Dimension150 x 140 x 86 mm
-
Fan Type120mm Hydraulic Bearing(HYB)fan
-
80 PLUSGold
-
Efficiency90% at typical load
-
MTBF>100,000 hours
-
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100-150ms
-
Hold Up Time>16ms
-
Cable TypeFlat, All black
-
ConnectorsATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1
PCI-e 12+4 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
