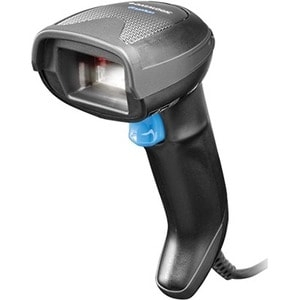

Datalogic Gryphon I Gd4520 Kit 2D Mpixel (Gd4520-Bkk1S)

Rated /5 based on customer reviews

SKU: 293758

Brand: DATALOGIC

Manufacturer Link

MPN: GD4520-BKK1S

Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate:

$403.00
Buy Now And Earn Reward Points!
Qty:
New Page 1

IMAGING TECHNOLOGY
The Gryphon™ 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.

TOP TECHNOLOGIES FOR TODAY'S POS
Perfect for both hand held and presentation reading, the Gryphon I GD4500 imager exploits Datalogic's Motionix™ motionsensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering more operational choices. Both the aimer and sensor can be programmed to the user's desired preferences.

Datalogic distinctive reading technology with highly visible white-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.

SIMPLE TO USE AND DEPLOY
The Gryphon I GD4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. A dedicated version with red illumination optics reads Digital Watermarking. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.

The enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.

New Page 1
Basic
Host Interface: USB
Product Type: Handheld Barcode Scanner Kit
Image Sensor: Imager
Colour: Black
Connectivity Technology: Cable
Brand Name: Datalogic
Barcode Dimension: 1D
  2D
Product Family: Gryphon GD4500
General Information
Product Type: Handheld Barcode Scanner Kit
Manufacturer Part Number: GD4520-BKK1S
Manufacturer Website Address: http://www.datalogic.com
Manufacturer: Datalogic S.p.A
Product Model: GD4520
Product Name: Gryphon GD4520 Handheld Barcode Scanner Kit
Product Line: Gryphon
Product Series: GD4500
Brand Name: Datalogic
Interfaces/Ports
Host Interface: USB
Miscellaneous
Environmentally Friendly: Yes
Physical Characteristics
Weight (Approximate): 161 g
Colour: Black
Technical Information
Barcode Symbology Supported: 1D:

  • Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)
Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes
Image Sensor: Imager
Connectivity Technology: Cable
Barcode Dimension: 1D
  2D
