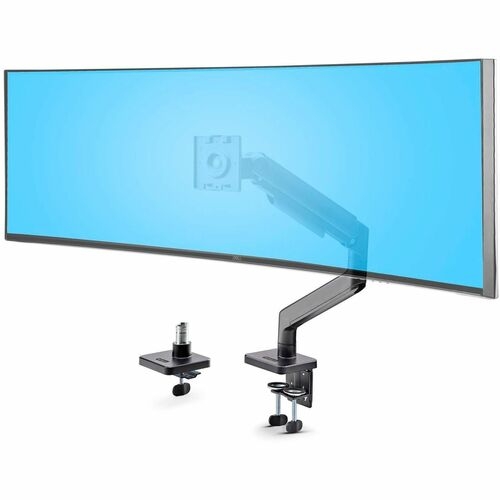

StarTech.com Monitor Desk Mount For Up To 49in 32:9 Ultrawide Curved Screen, Mechanical Spring Arm, C-Clamp/Grommet, Max Weight 44lb/20kg - Monitor Desk Mount For Up To 49in 32:9 Ultrawide Curved Screens - Vesa 75x75/100x100 - Mechanical Spring Arm W/too

SKU
434223
Brand
MPN
H1M1AG1-MONITOR-ARM
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $253.00 Regular Price $291.00
Buy Now And Earn 253 Reward Points!

QUICK OVERVIEW

H1M1AG1-MONITOR-ARM
This monitor desk mount creates an ergonomic workspace for productivity and supports up to 49-inch curved monitors, including 21:9 and 32:9 ultrawide displays. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.

Height Adjustment with One Smooth Motion

The spring arm enables a height adjustment range of up to 10.8in (27.6cm) to a maximum height of 20in (50.8cm) with effortless one-touch motion. The monitor arm can extend up to 24.4in (62.1cm) from the base of the desktop mount.

Range of Motion

The articulating arm enables 180° pan, and the VESA plate features tool-less adjustments of +/-90° horizontal swivel, -20°/+50° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Durable Construction

With its steel and aluminum construction, the premium dial monitor arm supports monitors between 4.4 to 44lb (2 to 20kg). This ensures long-lasting stability and reliability, making it ideal for office and home setups.

Cable Management

To maintain an organized workspace, the arms feature a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup.
Application/Usage Cable Management, Home, Office, Workspace
Product Type Mounting Arm
Device Supported Monitor, Curved Screen Display, Display
Features Tool-less Adjustment, +/- 180° Pivot, Adjustable, Adjustable Tension, Articulating Arm, Tilt, Swivel, Spring Arm, Rotate, Pivot, Pan, Grommet, Durable, Ergonomic
Maximum Load Capacity 19.96 kg
Brand Name StarTech.com
Minimum Screen Size Supported 43.2 cm
Maximum Screen Size Supported 124.5 cm (49")
VESA Mount Compatible Yes
Number of Displays Supported 1
Mounting Pattern 75 x 75, 100 x 100
Product Color Black
Color Family Black
Product Material Steel, Plastic, Aluminium
Minimum Load Capacity 2 kg
Mount Function Articulating, Tilt
Manufacturer Part Number H1M1AG1-MONITOR-ARM
Manufacturer Website Address http://www.startech.com/au
Manufacturer StarTech.com
Product Name Mounting Arm
Package Contents 1 x Spring Arm 1 x Swivel Arm 1 x Base 1 x VESA Mount Assembly 1 x Desk Clamp Bracket, Upper 1 x Desk Clamp Bracket, Lower 1 x Grommet Plate 2 x Clamping Discs 2 x Clamping Screws 1 x VESA Mount Nut 2 x Small Washers 2 x M4x10mm Screws 4 x M6x12mm Screw 1 x M8x35mm Screw 1 x 4mm Hex Key with Screwdriver 1 x 6mm Hex Key 4 x M4x12mm Screws 4 x M5x12mm Screws 4 x Large Washers 1 x User Manual
Weight (Approximate) 4.90 kg
Form Factor Desk
Length 13.5 cm
Height 62.5 cm
Width 66.3 cm
Orientation Landscape/Portrait
Minimum Extended Height 508 mm
Minimum Swivel Angle -180°
Maximum Swivel Angle 180°
Minimum Tilt Angle -20°
Maximum Tilt Angle 50°
Height Adjustable Yes
Minimum Rotate Angle -90°
Maximum Rotate Angle 360°
Maximum Pan Angle 180°
Shipping Dimensions Height 15, Width 20.1, Length 45, Shipping Weight 5.79 KG
StarTech.com Monitor Desk Mount for up to 49in 32:9 Ultrawide Curved Screen, Mechanical Spring Arm, C-Clamp/Grommet, Max Weight 44lb/20kg - Monitor Desk Mount for up to 49in 32:9 ultrawide curved screens - VESA 75x75/100x100 - Mechanical spring arm w/toolless adjustments +/-90 deg swivel; -20/+50 deg tilt; VESA 360 deg rotation - Arm height range 20in; C-clamp/grommet - Max weight 44lb
