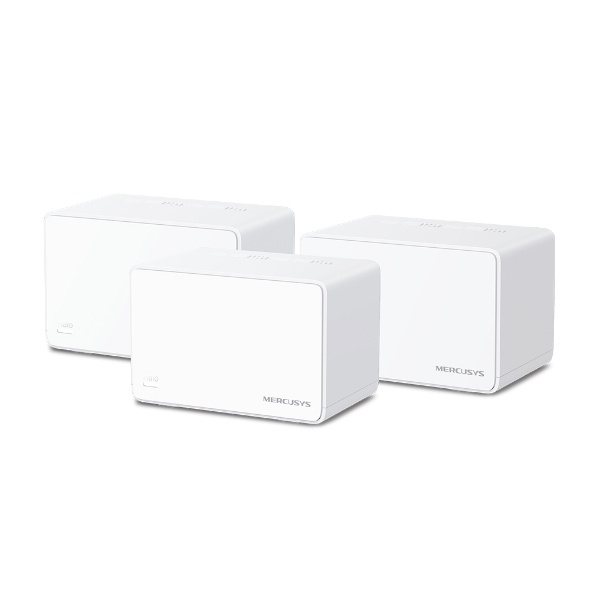

Mercusys Halo H80X(3-Pack) AX3000 Whole Home Mesh WiFi 6 System Halo-H80X(3-Pack)
SKU
408037
Brand
MPN
Halo-H80X(3-Pack)
Warranty
Standard Manufacturer's Warranty
$266.00
Buy Now And Earn 266 Reward Points!
Mercusys Halo H80X(3-Pack) AX3000 Whole Home Mesh WiFi 6 System
| MPN | Halo H80X(3-pack) |
|---|---|
| SKU | Halo-H80X(3-Pack) |
| DHCP | Server Address reservation DHCP client list |
| Type | Whole Home Mesh Wi‑Fi System / Router |
| Brand | Mercusys |
| Color | White |
| Model | Halo H80X (3-pack) |
| Notes | Supports MU‑MIMO and Beamforming Halo H series and S series cannot work together |
| Ports | 3 × 10/100/1000 Mbps Ethernet ports per unit (WAN/LAN auto-sensing) |
| Buttons | 1 × Reset button per unit |
| Coverage | Up to 650 m² (3-pack) |
| MU‑MIMO | true |
| Protocols | IPv4 IPv6 |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Management | Mercusys App setup and management Local management Remote management Access control |
| Beamforming | true |
| Description | Mercusys Halo H80X (3-pack) is an AX3000 dual-band Wi‑Fi 6 whole-home mesh system delivering up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. The three included Halo units provide blanket coverage up to 650 m², support connections for over 150 devices, and offer seamless roaming with a single unified network name and automatic handoff. Each unit includes three gigabit Ethernet ports (WAN/LAN auto-sensing), integrated antennas, MU‑MIMO, beamforming, guest network and parental controls, and is managed via the Mercusys app or local/remote management interfaces. Package includes 3 Halo units, 3 power adapters, 1 RJ45 Ethernet cable and a quick installation guide. |
| Item Weight | 1.36 pounds |
| Antenna Type | Internal / integrated |
| Manufacturer | Mercusys |
| Guest Network | 2.4 GHz and 5 GHz guest networks supported |
| Mesh Features | Seamless roaming with unified SSID Automatic device handoff between units Mesh protocol: 802.11k/v Units cooperate to maintain coverage if one unit fails |
| Product Title | Mercusys Halo H80X (3-pack) AX3000 Whole Home Mesh Wi-Fi 6 System |
| Frequency Bands | 2.4 GHz 5 GHz |
| Number of Units | 3 |
| Recommended Use | Home |
| Wireless Speeds | 5 GHz: 2402 Mbps 2.4 GHz: 574 Mbps Aggregate: AX3000 (~3000 Mbps) |
| Package Contents | 3 × Halo H80X units 3 × Power adapters 1 × RJ45 Ethernet cable 1 × Quick Installation Guide |
| Storage Humidity | 5% to 90% non-condensing |
| Country of Origin | China |
| Devices Supported | Up to 150 devices |
| Parental Controls | Features: [ "User profiles", "Online time limits", "Site blocking", "Internet break" ] Available: true |
| Wireless Security | WPA2-PSK + AES |
| Compatible Devices | Laptop Personal computer Smartphone Tablet |
| Operating Humidity | 10% to 90% non-condensing |
| Wireless Functions | Enable/Disable wireless radio Wireless statistics |
| Wireless Standards | IEEE 802.11ax (Wi‑Fi 6) IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions (per unit) | mm: 128 × 81 × 83.7 mm inches: 5 × 3.2 × 3.3 in |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Port Forwarding & NAT | Virtual Server UPnP DMZ Port triggering |
| Maximum Wireless Data Rate | 3000 Mbps |
