StarTech.com 10m (32.8ft) Active HDMI 2.0 Cable, Cmp, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, Hdr10/Hdcp 2.2/Arc - Route This Active High Speed HDMI 2.0 Cable Through Office Plenum Spaces For 4K 60Hz Video And 32-channel Audio; Cmp Rated; Gold-plat
SKU
424481
Brand
MPN
HD2AP-10M-HDMI-CABLE
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $267.00 Regular Price $307.00
Buy Now And Earn 267 Reward Points!
QUICK OVERVIEW
ed Connectors With Robust Strain Reliefs; Unidirectional; HDMI 2.0 W/HDR10/HDCP 2.2/Arc; 4K 60Hz; 18Gbps; 9mm O.D. HD2AP-10M-HDMI-CABLE
Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio.
HDMI UHD Over Long Distances
The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.
Full-Featured HDMI 2.0
The Active HDMI UHD Cable supports full HDMI 2.0 specifications:
• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz) • High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality • Audio Return Channel (ARC) for 7.1 and 32-channel audio • High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display • Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities • Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing Plenum-Rated Cabling
This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.

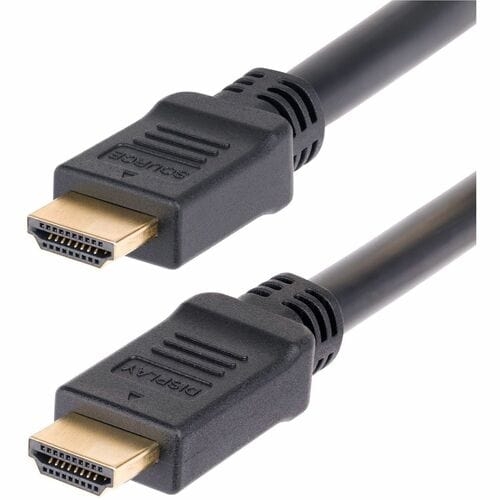

Note : This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.
HDMI UHD Over Long Distances
The Active HDMI 2.0 cord is designed for long-distance reliability. Durable gold-plated connectors and 24/28AWG bare copper wire maintain optimal conductivity and low resistance, ensuring consistent performance across different environments. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. This enables the transmission of HDMI UHD video beyond passive cable lengths.
Full-Featured HDMI 2.0
The Active HDMI UHD Cable supports full HDMI 2.0 specifications:
• Up to 18Gbps bandwidth for 4K 60Hz video and higher refresh rates at lower resolutions (e.g. 1080p/1440p 120Hz) • High Dynamic Range (HDR10) with 10-bit processing for higher contrast ratio and vibrant, cinematic picture quality • Audio Return Channel (ARC) for 7.1 and 32-channel audio • High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display • Dual Video Streams enable two independent video streams from a single source, allowing for picture-in-picture and other capabilities • Variable Refresh Rate (VRR) synchronizes the refresh rate of the display with the output frame rate of the content, reducing screen tearing Plenum-Rated Cabling
This HDMI 2.0 Cable features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics. It is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations). The durable outer jacket is rated to withstand over 1,000 bending cycles at -/+60 degrees. This protects the cable from damage when routing through tight spaces that include multiple bends.
Note : This cable is unidirectional and must be installed in a specific direction. Refer to the embossed SOURCE and DISPLAY markings on the HDMI connectors to ensure that each end corresponds with the correct hardware.
| Cable Length | 10 m |
| Product Type | A/V Cable |
| Brand Name | StarTech.com |
| Cable Type | HDMI |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
| Product Color | Black |
| Color Family | Black |
| Manufacturer Part Number | HD2AP-10M-HDMI-CABLE |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | 10m Active HDMI Cable |
| Material Details | Cable - Copper |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shielding Material | Aluminum Mylar Foil |
| Product Material | Copper |
| Data Transfer Rate | 18 Gbit/s |
| Device Supported | Video Wall, Projector, Audio/Video Device, Display, Monitor |
| Jacket Type | Plenum, CMP |
| Shielding | Yes |
| Features | Strain Relief, HDR10 Support, Variable Refresh Rate (VRR), HDCP 2.2, Dynamic HDR Support, Dual Video Stream, Damage Resistant, Braided, Audio Return Channel (ARC), Active |
| Connector Plating | Gold |
| American Wire Gauge | 24/28 AWG |
| Supported Resolution | 3840 x 2160 |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Shipping Dimensions | Height 7, Width 26.1, Length 30.2, Shipping Weight 0.97 KG |
StarTech.com 10m (32.8ft) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC - Route this Active High Speed HDMI 2.0 Cable through office plenum spaces for 4K 60Hz video and 32-channel audio; CMP Rated; Gold-plated connectors with robust strain reliefs; Unidirectional; HDMI 2.0 w/HDR10/HDCP 2.2/ARC; 4K 60Hz; 18Gbps; 9mm O.D.
