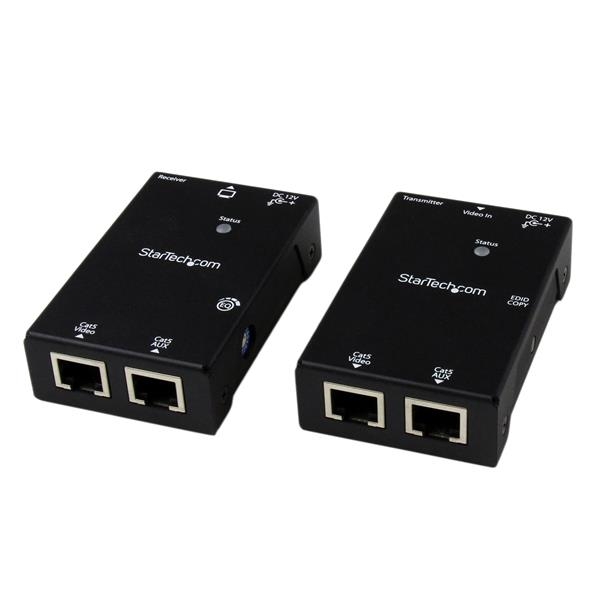

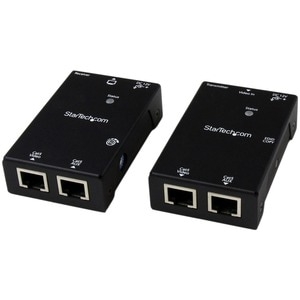

Startech Hdmi Over Cat5/cat6 Extender With Power Over Cable (poc) - 165 Ft (50m) Hdmi Video/audio
QUICK OVERVIEW
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | ST121SHD50 |
| Manufacturer Website Address: | http://www.startech.com |
| Manufacturer: | StarTech.com |
| Marketing Information: | Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver. The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables, or 130 feet (40 Meters) over dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited. Backed by a StarTech.com 2-year warranty and free lifetime technical support. |
| Product Model: | ST121SHD50 |
| Product Name: | HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m) |
| Product Type: | Video Console/Extender |
| Interfaces/Ports | |
|---|---|
| HDMI In: | Yes |
| HDMI Out: | Yes |
| Network (RJ-45): | Yes |
| Number of HDMI Inputs: | 1 |
| Number of HDMI Outputs: | 1 |
| Number of Network (RJ-45) Ports: | 4 |
| Media & Performance | |
|---|---|
| Media Type Supported: | Twisted Pair |
| Twisted Pair Cable Standard: | Category 6 |
| Physical Characteristics | |
|---|---|
| Colour: | Black |
| Form Factor: | Rack-mountable |
| Height: | 20.3 mm |
| Length: | 78.7 mm |
| Material: | Aluminium |
| Weight (Approximate): | 155.9 g |
| Width: | 50.8 mm |
| Technical Information | |
|---|---|
| Connectivity Technology: | Wired |
| Daisy Chain: | No |
| Maximum Operating Distance: | 50 m |
| Number of Input Devices Supported: | 1 |
| Number of Output Devices Supported: | 1 |
| Video | |
|---|---|
| Graphics Modes: | Full HD |
| Maximum Video Resolution: | 1920 x 1080 |
| Connector(s) | |
| Local Unit Connectors | HDMI (19 pin) Female |
| RJ-45 Female | |
| Remote Unit Connectors | HDMI (19 pin) Female |
| RJ-45 Female | |
| Environmental | |
| Humidity | 0% - 80 % |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 115?F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5 UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | Power |
| Packaging Information | |
| Shipping (Package) Weight | 0.7 kg [1.5 lb] |
| Performance | |
| General Specifications | Maximum Distances - (1080i only) CAT5E (stranded) - 40m (130 ft) CAT5E (solid) - 50m (165 ft) CAT6 (stranded or solid) - 50m (165 ft) |
| Max Distance | 50 m / 165 ft |
| Maximum Digital Resolutions | 1080p / 1920x1080 |
| Supported Resolutions | 1080i - Cat6 (stranded or solid) - up to 50m - Cat5e (solid) - up to 50m - Cat5e (stranded) - up to 40m 1080p - Cat6 (solid or stranded) - up to 40m - Cat5 (solid) - up to 20m - Cat5 (stranded) - up to 16m See product manual for further details |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 21 mm [0.8 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 157 g [5.5 oz] |
| Product Width | 51 mm [2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | foot pad set |
| HDMI over CAT5e/6 UTP receiver | |
| HDMI over CAT5e/6 UTP transmitter | |
| instruction manual | |
| mounting brackets | |
| universal power adapter (NA / EU / UK / AU) | |
The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables, or 130 feet (40 Meters) over dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
