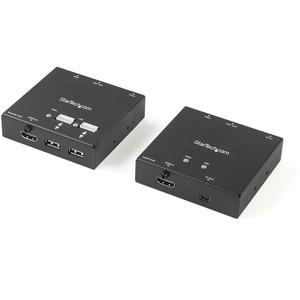

HDMI Over CAT6 Extender With 4-port USB ST121USBHD
SKU
221545
Brand
MPN
ST121USBHD
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$369.00
Buy Now And Earn 369 Reward Points!
QUICK OVERVIEW
121USBHD
This HDMI® extender kit lets you transmit yourHD video sourceto your remote HDMIdisplay at a distance of up to 165 ft. (50 m) away. 1080p video can be extended 131 ft. (40 m) using shielded CAT 6 cabling. The extender features a built-in4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location. Crystal-clear picture quality Using this HDMI extender, you can maintain the quality ofyour high-definition video signal along with theaccompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supportsresolutions up to 1920x1200 or 1080p -perfectfor dazzling your audience in remote digital-signage applications in hospitalsor at shopping centers. Hassle-free remote USB integration The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display -great forflash drives, printers, scanners, external hard drives andI/O devices.Remote USB extension also enables you to remotelycontrol your sourcedevice, which is idealfor adding touchscreen interfaces at your display in market or POS kiosks. Easy installation and setup For hassle-freesetupthe HDMI extender offerseasy plug-and-play installation with noadditional software or drivers required. Plus, the extender passes theEDID information included inyour HDMIsignal,and automatically adjusts video equalizationensuring you won't have to configure it manually. Mounting hardware is also included, for a tidy and professional installation. Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m. The ST121USBHD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer
| Product Type | Video Extender Transmitter/Receiver |
| Connectivity Technology | Wired |
| Brand Name | StarTech.com |
| Maximum Operating Distance | 79.25 m |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 5 |
| Number of HDMI Inputs | 1 |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| TAA Compliant | Yes |
| Manufacturer Part Number | ST121USBHD |
| Manufacturer Website Address | http://www.startech.com/au |
| Packaged Quantity | 1 Kit |
| Manufacturer | StarTech.com |
| Product Name | HDMI over CAT6 Extender with 4-port USB Hub - 165 ft (50m) - 1080p |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Number of HDMI Outputs | 1 |
| HDMI In | Yes |
| HDMI Out | Yes |
| Twisted Pair Cable Standard | Category 6 |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/st121usbhd_rohs.pdf |
| EU RoHS Declaration URL | https://media.startech.com/cms/pdfs/st121usbhd_rohs.pdf |
| End of Life Manual Availability | Yes |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/st121usbhd_weee.pdf |
| Transmitter Height | 20.32 mm |
| Transmitter Width | 81.28 mm |
| Transmitter Depth | 81.28 mm |
| Receiver Height | 20.32 mm |
| Receiver Width | 81.28 mm |
| Receiver Depth | 81.28 mm |
| Transmitter Weight (Approximate) | 460 g |
| Receiver Weight (Approximate) | 460 g |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Shipping Dimensions | Height 7, Width 8, Length 31, Shipping Weight 1.04 KG |
HDMI over CAT6 Extender with 4-port USB
