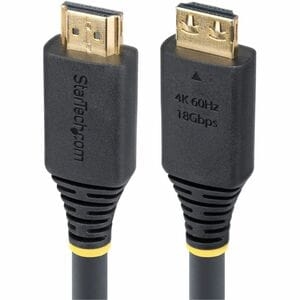

StarTech.com 20ft (6m) Active High Speed HDMI Cable with Gripping Connectors, 4K 60Hz/1440p 144Hz 18Gbps, UHD HDMI 2.0 Cord, TPE Jacket - High Speed HDMI Cable w/gripping connectors to minimize accidental disconnection; Supports 4K 60Hz w/HDR10/HDCP/ARC;
Connect to a 4K UHD TV or monitor, using this High Speed HDMI Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked HDMI cables. Eliminate guesswork and always choose the appropriate cable to support full HDMI 2.0 capabilities.
Gripping Connectors
The HDMI UHD Cord features gold-plated gripping connectors to prevent accidental disconnections. The connectors attach securely to HDMI device ports, making this cable ideal for critical A/V setups such as security systems and HDMI switches.
Durable Design
The HDMI Monitor Cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Gold-plated connectors are rated to operate beyond 10,000 insertions.
Supported HDMI 2.0 Features:
This High Speed HDMI Cable supports full HDMI 2.0 features:
- Resolutions up to 4K 60Hz using a compatible HDMI source and display
- Supports high refresh rates including 1440p 144Hz and 1080p 240Hz
- 21:9 Aspect Ratio support for cinematic viewing experiences
- High Dynamic Range (HDR10) for higher contrast ratio and vibrant picture quality
- High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
- Audio Return Channel (ARC) for sending audio from the TV back to an AV receiver or soundbar
- Up to 32 Uncompressed Digital Audio Channels
- HDMI Ethernet Channel (HEC) for network connectivity over HDMI
- Backward compatible with previous HDMI versions
This HDMI 2.0 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

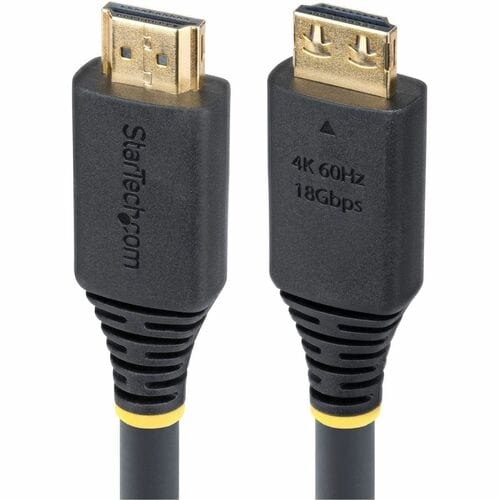

- DESIGNED FOR LONG RANGE: Active HDMI 2.0 Cable delivers 4K 60Hz beyond the length of passive copper cables; Integrated active chipset ensures consistent long-range signal quality; Performance markings on connectors for quick and easy identification
- GRIPPING HDMI CONNECTORS: This HDMI 2.0 cord features gold plated gripping male connectors to prevent accidental disconnection due to tension or vibration; Keeps cable securely connected to mounted HDMI displays and hard-to-access HDMI ports
- QUALITY CONSTRUCTION: Gold-plated connectors rated beyond 10,000 insertions; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant; Tested to withstand 2,000 bending cycles at -/+60 degrees; Braided shield for enhanced EMI protection
- APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Connect an HDMI monitor to a 4K docking station
- SPECS: Black; 20-foot (6-meter); High Speed HDMI with Ethernet; HDMI 2.0 supports HDR10/ARC/HDCP 2.2/CEC; 4K 60Hz/1440p 144Hz/1080p 240Hz; 18Gbps; 32-ch Audio; Backward Compatible; 24/26AWG; 9mm (0.35in) O.D.
Miscellaneous | |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
General Information | |
Product Type | A/V Cable |
Manufacturer Part Number | HDMI2-CABLE-GRIP-20F |
Manufacturer Website Address | http://www.startech.com/au |
Packaged Quantity | 1 |
Manufacturer | StarTech.com |
Product Name | 20ft HDMI 2.0 Cable |
Brand Name | StarTech.com |
Physical Characteristics | |
Weight (Approximate) | 303.3 g |
Height | 10.2 mm |
Width | 20.3 mm |
Jacket Material | Thermoplastic Elastomer (TPE) |
Shielding Material | Aluminum Mylar |
Product Color | Black |
Color Family | Black |
Product Material | Santoprene |
Technical Information | |
Cable Length | 6.10 m |
Data Transfer Rate | 18 Gbit/s |
Device Supported | Audio/Video Device |
Workstation | |
TV |
Monitor | |
Display | |
External GPU | |
Features | EMI Protection |
Flexible | |
Gripping Connector | |
Halogen-free | |
HDCP 2.2 | |
HDMI Ethernet Channel (HEC) | |
HDR10 Support | |
Strain Relief | |
Active | |
Audio Return Channel (ARC) | |
Braided | |
Durable | |
Cable Type | HDMI |
Connector Type on First End | HDMI 2.0 Digital Audio/Video |
Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
Connector Plating | Gold |
American Wire Gauge | 24/26 AWG |
Supported Resolution | 3840 x 2160 |
1920 x 1080 | |
2560 x 1440 | |
Connector on First End Details | 1x HDMI 2.0 Digital Audio/Video - Male |
Connector on Second End Details | 1x HDMI 2.0 Digital Audio/Video - Male |
Connector Gender on First End | Male |
Connector Gender on Second End | Male |
