The DVD RW drive is capable of reading DVD 4.7 GB through 8.5 GB media. It can also read standard stamped, CD-R, and CD-RW media.

This drive supports writing to CD-R, CD-RW, DVD +R/RW, and DVD -R/RW media via software utilities. For Microsoft® operating systems, this is available by installing the included Roxio software disk.

For other operating systems, an operating system-specific software utility is required for writing to media. The DVD-ROM drive is designed to read not only CD-ROM and CD -R/RW discs but also DVD-ROM, DVD-RAM, DVD +R/RW and DVD -R/RW discs.
What's new

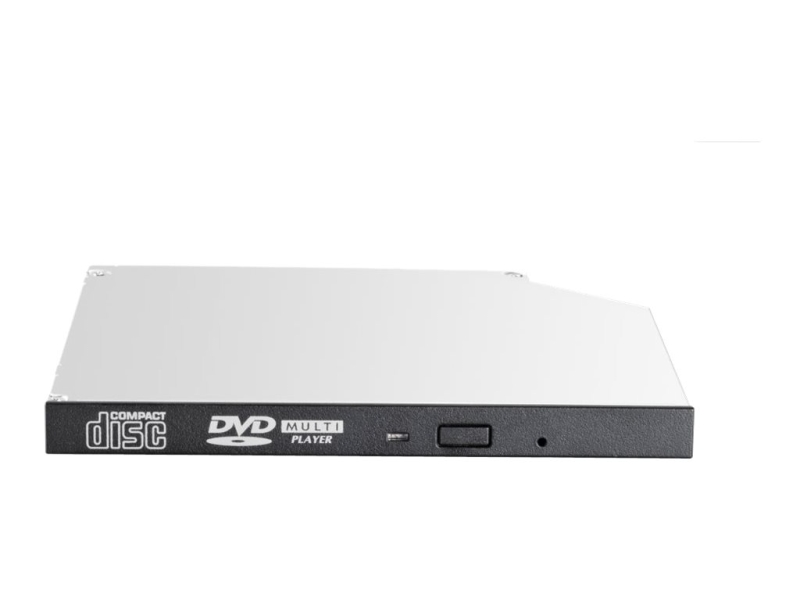

The 9.5mm SATA DVD-ROM and DVD RW optical drives designed for ProLiant Gen9 Servers
Features
Typical Customers are Those Who
Want to perform local back up or retail/branch office configuration archiving
Want to locally install software/patches or load data
Require an OS boot disk that is larger than traditional floppy drives
Need the latest in optical drive support with DVD capacity
Size
9.5mm

Applicable disk
DVD-ROM
DVD-R /-RW (Read Only)
DVD+R /+RW (Read Only)
DVD-RAM (Read Only)
CD-ROM Mode-1 data disc
CD-ROM Mode-2 data disc
CD Audio disc
CD-Extra
CD-RW (Read Only)
CD-R (Read Only)
CD Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge

Loading mechanism
Tray type Auto loading

Interface
SATA 1.5

Access times (typical)
Random: DVD-ROM < 160 ms, CD-ROM < 140 ms
Full-Stroke: DVD-ROM < 300 ms, CD-ROM < 275 ms

Data transfer rate
DVD-ROM Up to 8X
DVD+R/-R Up to 8X
DVD+RW/-RW Up to 8X
DVD+R DL/-R DL Up to 8X
DVD-RAM Up to 5X
CD-ROM/-R/-RW Up to 24X

Spin-up time (typical)
Less than 15 seconds

What's included
SATA DVD ROM drive
Installation guide
Warranty card
Roxio software disk
SATA data and power cables

Product differentiator
9.5mm
tray type auto loading
Warranty
The warranty for this device is 1-year parts only. Maximum: The remaining warranty of the HP server product in which it is installed (to a maximum three-year limited warranty).
Dimensions and weight
Dimensions (W x D x H)
0.95 x 12.95 x 13.21 cm
Weight
0.66 kg
