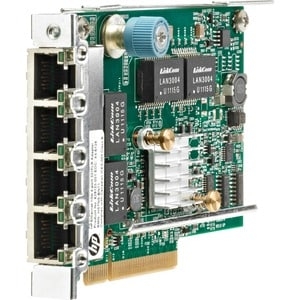

Hp Ethernet 1gb 331flr 4p Adapter 629135-b22

SKU
211883
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

QUICK OVERVIEW

NULL
The HP Ethernet 1Gb 4-port 331FLR Adapter for select HP ProLiant Gen8 and Gen9 rack servers features the next generation of Ethernet integration, offering a single-chip solution in a FlexibleLOM form factor, which offers the option for future upgrades to 10GbE networking speeds. It delivers full line-rate performance across all ports with low power consumption.

The HP 331FLR is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4Gb meets the needs of customers desiring high bandwidth.

The HP 331FLR supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, HP Sea of Sensors 3D and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

What's new

  • Latest quad-port PCIe Copper Gigabit NIC for select HP ProLiant Gen8 and Gen9 rack servers, based on Broadcom 5719 chip in a Flexible LOM form factor
  • Replaceable FLexibleLOM enables easy upgrade from 1GbE to 10GbE
  • Optimized for server virtualization, including VMware NetQueue and Microsoft VMQ

Features



Designed for Maximum Throughput and High Port Density



Replaceable FLexibleLOM enables easy upgrade from 1 GbE to 10 GbE

An aggregate, full duplex transfer rate of 8 Gb/s per adapter delivers outstanding network performance that improves response time and removes bottlenecks

Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties

Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads

Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores

Technical features





Network processor

  • Broadcom BCM5719 chipset



Data rate

  • Four 1 GbE ports, each at 2 Gbps full duplex
  • 8 Gbps aggregate full duplex theoretical bandwidth. 10/100/1000 Mbps, Full-duplex



Bus type

  • PCI Express v2.0 (Gen 2 x4) (FlexibleLOM slot)



Form factor

  • FlexibleLOM



Power

  • 5.5W Maximum



Server type supported

  • ProLiant servers



IEEE compliance

  • 802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, 1588, 802.1as



Compatible operating systems

  • Microsoft Windows 2008, Server 2008
  • Microsoft Windows HPC Server 2008
  • Red Hat Enterprise Linux 5.7and 6.1 (AMD64/EM64T)
  • SUSE Linux Enterprise Server 10 and 11 (AMD64/EM64T)
  • Oracle Solaris 10
  • VMware ESX and ESXi
  • Microsoft Windows Hyper-V



Product differentiator

  • Single-chip, quad-port, 1Gb Ethernet Flexible LOM designed for maximum throughput and high port density.
