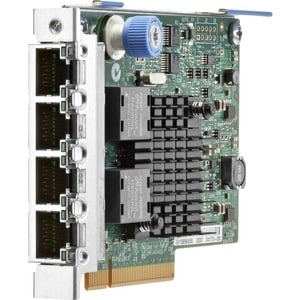

Hp Ethernet 1gb 4-port 366flr Adapter 665240-b21
The HP Ethernet 1Gb 4-port 366FLR features the next generation of Ethernet
integration offering in a single chip solution on a FlexibleLOM form factor,
further reducing power requirements for 4 ports of 1Gb Ethernet. The HP 366FLR
is the PCI Express 2.1 x4 based on the latest Intel® Ethernet Controller I350
designed for use with select HP ProLiant Gen8 rack and scalable servers.
Its FlexibleLOM form factor means customer now have choice to meet growing
infrastructure needs. The HP 366FLR adapter supports advanced features such as
Large Send offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X,
Jumbo frames, IEEE 1588, and virtualization features such as Intel
Virtualization Technology for Connectivity, VMware NetQueue, Microsoft VMQ and
WOL, and power management technologies like Energy Efficient Ethernet.
What's new
4-port PCIe 2.1, x4 lane 1Gb FlexibleLOM adapter based on Intel® Ethernet
Controller I350 for select HP ProLiant Gen8 Rack and Scalable servers
Optimized for virtualization with VMDq and SR-IOV in Microsoft VMQ, VMware
NetQueue, Xen and Linux environments
New I/O technologies increase performance and reduce system power and I/O
latency.
Features
4-port 1Gb Ethernet PCIe Gen 2.1, x4 lane adapter designed for maximum network
performance
SR-IOV ready virtualization capabilities with support for VMware NetQueue and
Microsoft VMQ , Intel VT-c helps meet the performance demands of consolidated
virtual workloads
New I/O technologies reduce system power, increases I/O performance and reduces
I/O latency. Supports Precision Time Stamping protocol ( IEEE 1588 and 802.1AS)
Supports Wake-on-LAN (WOL) at 1Gb, has PXE , MSI-X support, Teaming, IPv6
Adapter supports HP Sea of Sensors 3D Technology
Technical features
Network processor
Intel® I350 Controller
Data rate
Four lane (x4) PCI Express, mechanically compatible with x8 and x16FlexibleLOM
slots
Bus type
PCI Express v2.0 (Gen2.1 x4) (FlexibleLOM slot)
Form factor
FlexibleLOM
Power
5.5W Maximum
Server supported
ProLiant servers
IEEE compliance
802.3, 802.3ab, 802.3u, 802.3x, 802.3ad, 802.1q, 802.3az, 1588, 802.1as
Compatible operating systems
Microsoft Windows Server 2008, Microsoft Windows 2008, Microsoft Windows HPC
Server 2008
Red Hat Enterprise Linux 5.7 and 6.1 (AMD64/EM64T)
SUSE Linux Enterprise Server 10 and 11(AMD64/EM64T)
Oracle Solaris 10
VMware
Microsoft Windows Hyper-V
Product differentiator
Ethernet 1Gb 4-port 366FLR Adapter
Dimensions and weight
Dimensions (W x D x H)
6.35 x 20.96 x 24.84 cm
Weight
0.45 kg
Marketing Text | The HP Ethernet 1Gb 4-port 366FLR features the next generation of Ethernet integration offering in a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 4 ports of 1Gb Ethernet. The HP 366FLR is the PCI Express 2.1 x4 based on the latest Intel Ethernet Controller I350 designed for use with select HP ProLiant Gen8 rack and scalable servers. Its FlexibleLOM form factor means customer now have choice to meet growing infrastructure needs. The HP 366FLR adapter supports advanced features such as Large Send offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, Jumbo frames, IEEE 1588, and virtualization features such as Intel Virtualization Technology for Connectivity, VMware NetQueue, Microsoft VMQ and WOL, and power management technologies like Energy Efficient Ethernet |
PI Date | Aug 2014 |
Brand Name | HP |
Manufacturer Web Site | http://www.hp.com |
Product Model | 366FLR |
Product Type | Gigabit Ethernet Adapter |
Form Factor | Plug-in Card |
Ports | 4 X RJ-45 |
No. of Ports | 4 |
Bus Type | PCI Express x4 |
Network Topology | 10/100/1000Base-T |
Connectivity | 10/100/1000BASE-T |
Interrupt Levels | MSI-X |
IEEE Compliance | * 802.3 * 802.3ab * 802.3u * 802.3x * 802.3ad * 802.1q * 802.3az * 1588 * 802.1as |
Compatibility | * HP ProLiant DL160 Gen8 * HP ProLiant DL360p Gen8 * HP ProLiant DL380p Gen8 * HP ProLiant DL385p Gen8 * HP ProLiant DL560 Gen8 * HP ProLiant SL230 Gen8 * HP ProLiant SL250s Gen8 * HP ProLiant SL270s Gen8 |
Compliance Standards | * RoHS-6 |
