Startech Hp Jd094b Compatible Sfp+ Module - 10gbase-lr Fiber Optical Sfp Transceiver - Lifetime
SKU
269977
Brand
MPN
JD094BST
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$119.00
Buy Now And Earn 119 Reward Points!
QUICK OVERVIEW
Warranty - 10 Gbps - Maximum Transfer Distance JD094BST
Overview

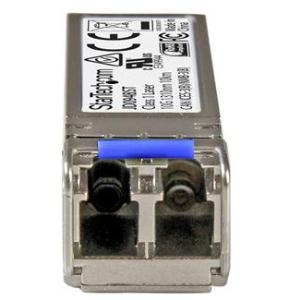

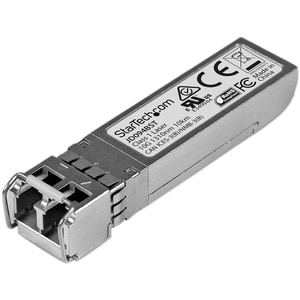

The JD094BST is an HP JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 11.1 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 2,104,865 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
| Basic | |
|---|---|
| Brand Name: | StarTech.com |
| Ethernet Technology: | 10 Gigabit Ethernet |
| Interfaces/Ports Details: | 1 x 10GBase-LR |
| Media Type Supported: | Optical Fiber |
| Network Technology: | 10GBase-LR |
| Product Type: | SFP+ |
| General Information | |
|---|---|
| Brand Name: | StarTech.com |
| Manufacturer Part Number: | JD094BST |
| Manufacturer Website Address: | http://www.startech.com/au |
| Manufacturer: | StarTech.com |
| Packaged Quantity: | 1 |
| Product Name: | HP SFP+ Module |
| Product Type: | SFP+ |
| Interfaces/Ports | |
|---|---|
| Interfaces/Ports Details: | 1 x 10GBase-LR |
| Media & Performance | |
|---|---|
| Ethernet Technology: | 10 Gigabit Ethernet |
| Fiber Mode Supported: | Single-mode |
| Media Type Supported: | Optical Fiber |
| Network Technology: | 10GBase-LR |
| Miscellaneous | |
|---|---|
| Compatibility: | MSA Compliant |
| Physical Characteristics | |
|---|---|
| Depth: | 58.4 mm |
| Form Factor: | Hot-pluggable |
| Height: | 12.7 mm |
| Weight (Approximate): | 19.8 g |
| Width: | 12.7 mm |
| Technical Information | |
|---|---|
| Application/Usage: | Data Networking |
| Marketing Text | Built to exacting specifications and fully tested to ensure maximum performance, you can install this high-quality fiber transceiver module into HP networking devices that support the HP J9152A transceiver module, as well as other major brands of networking equipment. |
| PI Date | Jun 2017 |
| Brand Name | Startech |
| Manufacturer Web Site | http://www.startech.com |
| Form Factor | SFP+ |
| Product Type | Transceivers Module |
| Cable Type | Single Mode Fiber (SMF) |
| Connector | Duplex LC |
| Data Transfer Rate | 10Gbps |
| Interface | 10G Base-LR |
| Maximum Transmission Distance | 220meter |
| Slot Type | SFP+ |
| Wavelength | 1310nm |
| Depth (mm) | 58.4 |
| Height (mm) | 12.6 |
| Width (mm) | 13.9 |
| Weight (Grams) | 30.0 |
| Other Features | * Supports Digital Diagnostics Monitoring (DDM) * Hot-pluggable * Built for reliable network performance |
