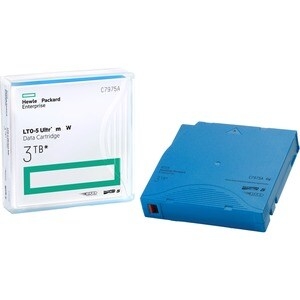

Hp Lto5 Ultrium Non Custom Labe C7975an
Archival life 30 years
Base Material Metal Particle
Bit density 343 kbits/inch
Capacity 3.0 TB Compressed 2:1; Supported
Data tracks 1280
Drive compatibility Storage Media Compatibility Matrix
Drive compatibility url http://www.hptapecompat.com
Magnetic coercivity 2500-2700 Oe
Media durability 30 years or 260 full back ups
Media format Re-Writable
Media labeling Labeled-Non Custom
Product dimensions (W x D x H) 10.75 x 6 x 13 in
Quantity per Package 20
Read speed, media 280 MB/sec 280 MB/sec
Recording technology LTO-5 Ultrium
Tape length 846 m
Tape thickness 6.4 um
Tape width (metric) 12.65 mm
Weight ( Imperial ) 13.67 lb
Weight ( Metric ) 6.2 kg
Extended specifications
Technical Information
Tape Technology LTO Ultrium - LTO-5
Storage Capacity 1.50 TB (Native)/3 TB (Compressed)
Tape Length 2776 ft Storage
Drive Supported LTO Ultrium 5 (Read/Write)
Durability 1000000 Head Passes
Physical Characteristics
Weight (Approximate) 10.08 oz
| Marketing Text | Improves data center performance, efficiency and security. Cartridges have pre-sequenced, high quality, computer-generated barcode labels attached for maximum scanning speed and accuracy |
| PI date | Oct 2010 |
| Brand Name | HP |
| Manufacturer Web site | http://www.hp.com |
| Product Line | Not defined |
| Product Type | Data Cartridge |
| Archival Life | 30 years |
| Capacity | 1.5TB |
| Capacity In Compressed Mode | 3TB |
| Color | Light Blue |
| Compatibility | HP LTO5 Ultrim 3000,3280 SAS int tape drive, HP LTO5 Ultrim 3000,3280 SAS Ext tape drive, HP MSL2024 1 LTOs 3280 FC tape library, HP MSL4048 1 LTOs 3280 FC tape library, HP MSL8096 2 LTOs 3280 FC tape library, HP MSL8096 4 LTOs 3280 FC tape library |
| Head Passes | 1000000 |
| Packaging Quantity | 20 |
| Tape Technology | LTO 5 |
| Tape Width | 12.65mm |
| Other Features | * Media Labeling - Labeled-Non Custom * Media Format - Re-Writable * Read Speed - 280 MB/sec * Tape Length - 846 m * Tape Width (Metric) - 12.65 mm * Tape Thickness - 6.4 um * Base Film Type - Metal Particle * Bit Density - 343 kbits/inch * Number of Data Tracks - 1280 * Magnetic Layer Coercivity - 2500-2700 Oe |
| Height (mm) | 110.9 |
| Length (mm) | 27.94 |
| Width (mm) | 113.0 |
| Weight (Grams) | 0.3 |
