Product dimensions (W x D x H) 0.5 x 12 x10 in

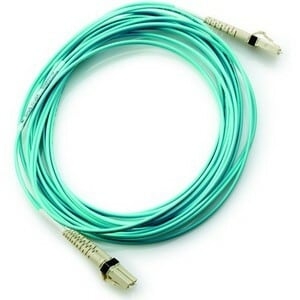

Technical Notes Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end. Dimensions: Core diameter: 50 ? 3.0um Cladding diameter: 125 ? 2.0um Coating diameter: 245 ? 10um Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber and designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23?C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg
Weight ( Imperial ) 1 lb
Weight ( Metric ) 0.45 kg
Extended specifications
General
Network Cable Type Network cable
Technology Fiber optic
Type of Fiber Optics Multimode
Core / Cladding Diameter 50 / 125 micron
Length 3.3 ft
Connectivity
Connector(s) 2 x LC multi-mode - male
Connector(s) (Other Side) 2 x LC multi-mode - male
Miscellaneous
Compliant Standards OM3
