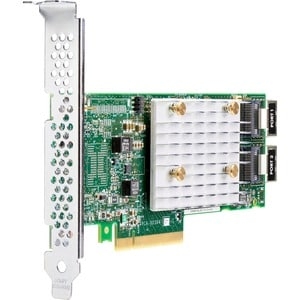

Hpe Smart Array E208i-p Sr Gen 10 12gb-sas Pcie Internal Plug-in Controller 804394-b21
SKU
263616
Brand
MPN
804394-B21
Warranty
Standard Manufacturer's Warranty
$965.00
Buy Now And Earn 965 Reward Points!
he HPE Smart Array E208i-p SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is an ideal cost-effective solution for RAID 0, 1, 5, and 10 and Software Defined Storage solutions. This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and provides enterprise-class reliability, security and efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest on any drive with HPE Smart Array SR Secure Encryption.
| Interfaces/Ports | |
|---|---|
| Number of SAS Ports (Internal): | 8 |
| SAS Connector Details: | 2 |
| Memory | |
|---|---|
| Cache Memory: | 2 GB |
| Miscellaneous | |
|---|---|
| Platform Supported: | Linux |
| PC | |
| Physical Characteristics | |
|---|---|
| Form Factor: | Plug-in Card |
| Technical Information | |
|---|---|
| Controller Type: | 12Gb/s SAS |
| Serial ATA/600 | |
| Data Backup Type: | Flash Backed Cache |
| Host Interface: | PCI Express 3.0 x8 |
| RAID Levels: | 0 |
| 1 | |
| 10 | |
| RAID Supported: | Yes |
| Marketing Text | The HPE Smart Array E208i-p SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides a cost effective storage solution with enterprise-class reliability supporting RAID 0, 1, 5, and 10 and software-defined storage (SDS). |
| PI Date | Feb 2018 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Product Model | E208i-p |
| Product Type | Smart Array Controller |
| Bus Type | PCI Express |
| Drive Type | SAS/SATA |
| Drives Supported | 8 |
| External Connector | 2 x Mini-SAS |
| Interface | PCI Express 3.0 x 8 |
| Internal Connector | 2 x Mini-SAS |
| Other Features | * 12Gb/s SAS per lane * 6Gb/s SATA per lane * PCI Express 3.0 x8 lane width |
| Product Compatibility | * HPE ProLiant DL360 Gen10 * HPE ProLiant DL380 Gen10 * HPE ProLiant DL560 Gen10 |
