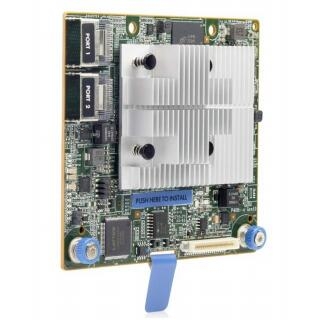

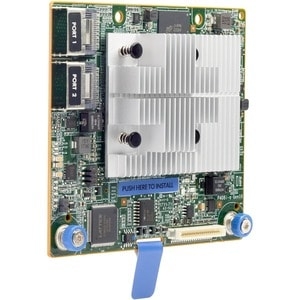

Hpe Smart Array P408I-A Sr Gen 10 12Gb-Sas Internal Mod Controller 804331-B21
The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is ideal for maximizing performance while supporting advanced RAID levels with 2 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight internal SAS lanes, allowing connection to SAS or SATA drives, and offers encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. This type-a modular controller occupies a dedicated storage slot without occupying a PCIe expansion slot and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.
The Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately.
| Interfaces/Ports | |
|---|---|
| Number of SAS Ports (Internal): | 8 |
| SAS Connector Details: | 2 |
| Memory | |
|---|---|
| Cache Memory: | 2 GB |
| Miscellaneous | |
|---|---|
| Platform Supported: | Linux |
| PC | |
| Physical Characteristics | |
|---|---|
| Form Factor: | Plug-in Module |
| Technical Information | |
|---|---|
| Controller Type: | 12Gb/s SAS |
| Serial ATA/600 | |
| Data Backup Type: | Flash Backed Cache |
| Host Interface: | PCI Express 3.0 x8 |
| RAID Levels: | 1 |
| 1 ADM | |
| 6 | |
| RAID Supported: | Yes |
| Marketing Text | The HPE Smart Array P408i-a SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. |
| PI Date | Feb 2018 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Product Model | P408i-a |
| Product Type | Smart Array Controller |
| Bus Type | PCI Express |
| Drive Type | SAS/SATA |
| Drives Supported | 8 |
| External Connector | 2 x Mini-SAS |
| Flash Backed Write Cache (FBWC) | Yes |
| Interface | PCI Express 3.0 x 8 |
| Internal Connector | 2 x Mini-SAS |
| Other Features | * 12Gb/s SAS per lane * 6Gb/s SATA per lane * PCI Express 3.0 x8 lane width * 2 GB Flash-Backed Write Cache |
| Product Compatibility | * HPE ProLiant DL360 Gen10 * HPE ProLiant DL380 Gen10 * HPE ProLiant ML350 Gen10 * HPE ProLiant XL450 Gen10 |
