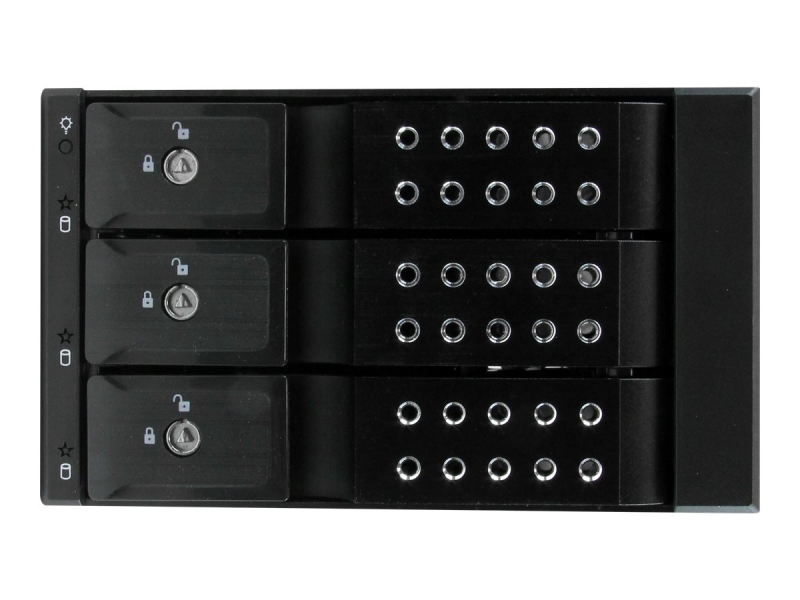

STARTECH.COM 3 BAY 3.5" SATA/SAS TRAYLESS MOBILE RACK BACKPLANE HSB3SATSASBA
- Solid aluminum construction
- Key lock design
- Built-in fan
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Product Description | StarTech.com 3-Bay Hot Swap Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - Aluminum Trayless Mobile Rack Backplane (HSB3SATSASBA) - storage mobile rack |
Device Type | Storage mobile rack |
Colour | Black |
Expansion Bays | 3 x hot-swap - 3.5" |
Compatible Bay | 2 5.25" |
Hard Drive Form Factor Compatibility | 2.5" |
Supported Interface | SATA-600 |
Drive Connector | 29 pin internal SAS (SFF-8482) |
Features | Data indicator, power indicator |
Product Material | Aluminium |
Dimensions (WxDxH) | 14.5 cm x 19.41 cm x 11 cm |
Weight | 1.2 kg |
Manufacturer Warranty | 2-year warranty |
Designed For | P/N: 25SAT35HDD, PEXMSATA3422, PEXMSATA343 |
