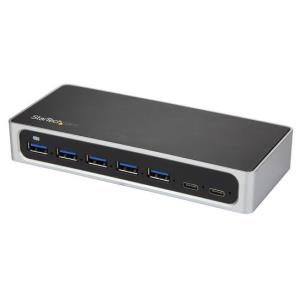

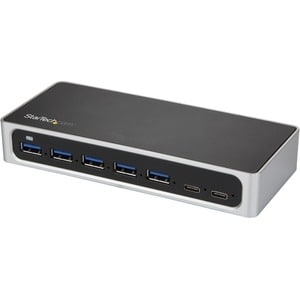

Startech Hub Usb C - 7 Port C To A & C - Usb 3.0 Hb30C5A2Csc
This USB-C™ hub turns your laptop or desktop USB Type-C™ or Thunderbolt™ 3 port into four standard USB-A ports, one USB-A fast-charge port, and two USB-C ports. You can also extend the range of your USB devices by using this hub as a mid-point repeater.
Connect more devices, quickly and easily
The 7-port USB hub provides convenient port access. The extended length of the supplied cable offers the flexibility to position your hub and USB devices as needed, in order to create a comfortable, space-efficient work area. The ports are sufficiently spaced to plug or unplug your USB devices without needing to disconnect other devices from neighboring ports.
With extra USB 3.0 ports, you can increase productivity and connect more devices to your computer, or avoid the hassle of swapping connected devices on your port-limited laptop.
The hub lets you extend the life of your current USB 3.0 devices while also taking advantage of newer USB-C devices.
Charge-and-sync your mobile devices
With the available fast-charge port, the hub helps to ensure that your tablet or smartphone are charged and ready to use when you need them. You can also sync and access your device while it's charging. The USB-A charge port supports USB Battery Charging Specification 1.2.
The HB30C5A2CSC is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Bus Type | USB 3.0 | |
| Chipset ID | VIA/VLI - VL813 | |
| Industry Standards |
USB Battery Charging Specification Rev. 1.2 USB-A charging port delivers up to 1.5 amps of power USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
|
| Interface | USB 3.0 | |
| Ports | 7 | |
| USB-C Device Port(s) | Yes | |
| USB-C Host Connection | Yes | |
| PERFORMANCE | ||
| Maximum Data Transfer Rate | 5 Gbps | |
| Supported Charging Modes | Charging Downstream Port (CDP) | |
| Dedicated Charging Port (DCP) | ||
| Supported Charging Outputs | BC 1.2 (1.5A) | |
| Type and Rate | USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes | |
| CONNECTOR(S) | ||
| Connector Type(s) | 4 - USB Type-A (9 pin) USB 3.0 Female | |
| 2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female | ||
| 1 - USB 3.0 A (Fast-Charge, 9 pin) Female | ||
| 1 - USB Type-B (9 pin) USB 3.0 Male | ||
| SOFTWARE | ||
| OS Compatibility | OS Independent; No additional drivers or software required | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note |
The USB Type-C ports are data only. USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. The hub does not support DP Alt Mode or USB Power Delivery. |
|
| System and Cable Requirements | Available USB Type-C port - USB 3.0 (5Gbps) | |
| INDICATORS | ||
| LED Indicators | 7 - Active | |
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 1 A | |
| Input Voltage | 100 - 240 AC | |
| Output Current | 4 A | |
| Output Voltage | 12 DC | |
| Plug Type | M | |
| Power Consumption (In Watts) | 48 | |
| Power Source | AC Adapter Included | |
| ENVIRONMENTAL | ||
| Humidity | 0~95% RH (Non-condensing) at 25°C | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 3.3 ft [1 m] | |
| Color | Black & Silver | |
| Enclosure Type | Plastic | |
| Form Factor | Desktop | |
| Product Height | 0.9 in [2.4 cm] | |
| Product Length | 5.9 in [14.9 cm] | |
| Product Width | 2.6 in [65 mm] | |
| Weight of Product | 5.3 oz [150 g] | |
| PACKAGING INFORMATION | ||
| Package Height | 2 in [51 mm] | |
| Package Length | 8.4 in [21.3 cm] | |
| Package Width | 5.9 in [14.9 cm] | |
| Shipping (Package) Weight | 19.4 oz [550 g] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - USB-C hub | |
| 1 - 1m USB-C to USB-B cable | ||
| 1 - universal power adapter (NA/JP, UK, EU, ANZ) | ||
| 1 - quick-start guide | ||
| Marketing Text | This USB-C hub turns your laptop or desktop USB Type-C or Thunderbolt 3 port into four standard USB-A ports, one USB-A fast-charge port, and two USB-C ports. You can also extend the range of your USB devices by using this hub as a mid point repeater. |
| PI Date | Mar 2019 |
| Brand Name | Startech |
| Manufacturer Web Site | http//www.startech.com |
| Product Type | USB Hub |
| Form Factor | Desktop |
| No. of Ports | 7 |
| Data Transfer Rate | 5Gbps |
| Interface | USB 3.0 |
| Maximum Data Rate | 5Gbps |
| Connector | 1 x USB 3.0 Type B |
| Gender | Male |
| Depth (mm) | 149.0 |
| Height (mm) | 24.0 |
| Width (mm) | 65.0 |
| Weight (Grams) | 150.0 |
| Operating Temperature | 0 to 50°C |
| System Requirements | * Available USB Type-C port - USB 3.0 (5Gbps) |
| Compliance Standards | * Rohs |
| Other Features | * Connect up to seven USB 3.0 devices to a single USB-C port * Cable enables flexible positioning of the hub and USB devices |
| Warranty Information | 2 Years |
