Ruckus 24-Prt Mg Poe 4X25G SFP28 ICX8200-24ZP
SKU
443086
Brand
MPN
ICX8200-24ZP
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$7,692.00
Buy Now And Earn 7692 Reward Points!

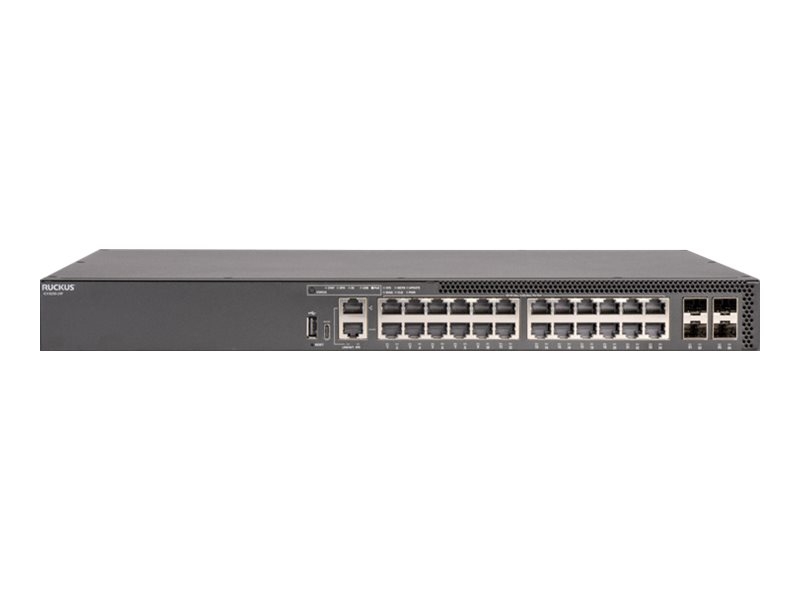

Ruckus ICX 8200 - Switch - L3 - Managed - 24 x 100/1000/2.5G (PoE++) - front and side to back - rack-mountable - PoE++ (740 W) - TAA Compliant
| Product Description | Ruckus ICX 8200 - switch - 24 ports - Managed - rack-mountable - TAA Compliant |
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Ports | 24 x 100/1000/2.5G (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 320 Gbps ? Forwarding performance: 237 Mpps ? Stacking bandwidth: 1.2 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 ? Spanning Tree Protocol instances: 253 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, GRE, OSPFv3, VRRPE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, VRRPv3, VRF |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP |
| Features | Flow control, DHCP support, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering, DDos attack prevention, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, DHCP server, MLD snooping, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), DHCP relay, Dynamic VLAN Support (GVRP), IGMP proxy, GARP VLAN Registration Protocol (GVRP), Root Guard, 1 fan, Private VLAN, Protocol Independent Multicast (PIM), BPDU Guard, Q-in-Q tunnelling, Inter-Packet Gap (IPG) adjustment, Port Loop Detection, VLAN / port mapping |
| Compliant Standards | IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1BR, IEEE 802.3bz, IEEE 802.3bt |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44 cm x 28 cm x 4.4 cm |
| TAA Compliant | Yes |
| Manufacturer Warranty | Limited lifetime warranty |
Ruckus ICX 8200 - Switch - L3 - Managed - 24 x 100/1000/2.5G (PoE++) - front and side to back - rack-mountable - PoE++ (740 W) - TAA Compliant
