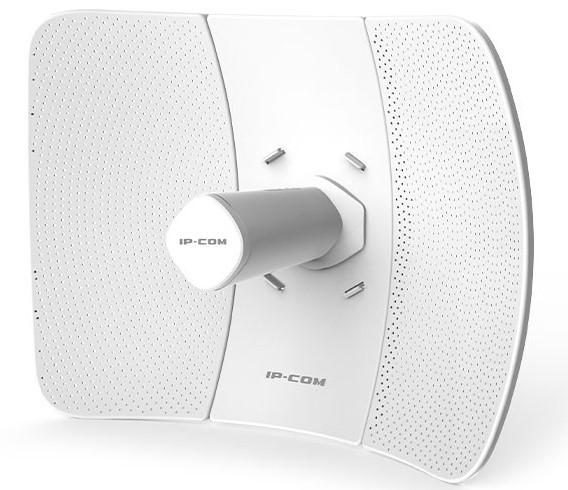

Ip-Com (iLBE-5AC) 5GHz 25km 867Mbps Point To Point Outdoor Cpe, 6kv Lightning Protection iLBE-5AC
SKU
390390
Brand
MPN
iLBE-5AC
Warranty
Standard Manufacturer's Warranty
$127.00
Buy Now And Earn 127 Reward Points!
IP-COM iLBE-5AC 5GHz 25km 867Mbps Point to Point Outdoor CPE
• 5GHz 11AC 867Mbps
• One Gigabit Ethernet Port
• Maximum Transmission Range 25km
• Antenna Beamwidth: Horizontal: 10° Vertical: 10°
• IP65 waterproof enclosure
• 6kv Lightning Protection
• 24V/0.5A Passive PoE (injector included)
• Automatic Pairing
• Smart Signal Indicator LED
• IP-COM TDMA Protocol to improve P2MP performance
• -30℃ - 60℃ working temperature
• 5GHz 11AC 867Mbps
• One Gigabit Ethernet Port
• Maximum Transmission Range 25km
• Antenna Beamwidth: Horizontal: 10° Vertical: 10°
• IP65 waterproof enclosure
• 6kv Lightning Protection
• 24V/0.5A Passive PoE (injector included)
• Automatic Pairing
• Smart Signal Indicator LED
• IP-COM TDMA Protocol to improve P2MP performance
• -30℃ - 60℃ working temperature
| SKU | iLBE-5AC |
|---|---|
| Brand | IP-COM |
| Model | iLBE-5AC |
| Notes | Specifications consolidated from multiple manufacturer and reseller sources. Warranty and some seller-specific details were inconsistent across sources and are not included. |
| Category | Networking |
| IP Rating | IP65 |
| Management | Centralized management software (PC-CPE Controller) |
| Description | The IP-COM iLBE-5AC is a long-range outdoor CPE designed for Point-to-Point and Point-to-Multipoint video surveillance transmission and wireless broadband access. Operating on the 5 GHz band with 802.11ac (Wave2) technology, it offers a PHY rate up to 867 Mbps and P2P-tested throughput up to 450 Mbps. A built-in 23 dBi dual‑polarization directional antenna and independent external power amplifier enable reliable links beyond 25 km in appropriate conditions. The unit includes a Gigabit Ethernet port, IP65 weatherproof enclosure, 6000V lightning protection, and supports AP, Station and WISP modes. Proprietary ipMAX (IP-COM TDMA) improves performance in P2MP scenarios, while iLink auto-bridge simplifies setup. Devices can be managed via the centralized PC-CPE Controller software. |
| Antenna Gain | 23 dBi |
| Antenna Type | Directional, dual-polarization |
| Product Type | Outdoor CPE |
| Sub-Category | Wireless Networking |
| Product Title | IP-COM iLBE-5AC 5GHz 23dBi ipMAX AC Gigabit Outdoor CPE |
| Ethernet Ports | 1 x Gigabit Ethernet (RJ-45) |
| Frequency Band | 5 GHz |
| Operating Modes | AP Station WISP (Client + Router) |
| Transmission Range | 25 km+ (manufacturer guidance) |
| Wireless Standards | 802.11ac (Wave2) 802.11a 802.11n |
| Lightning Protection | 6000 V |
| Maximum PHY Data Rate | 867 Mbps |
| Maximum P2P Throughput | Up to 450 Mbps |
| Proprietary Protocols / Features | ipMAX (IP-COM TDMA) iLink auto-bridge technology |
IP-COM (iLBE-5AC) 5GHz 25km 867Mbps Point to Point Outdoor CPE, 6kv lightning protection
