Shure (Imxf5-A) Intellimix Base Room Kits - 11" Touch Control + Shure Intellimix Mtr Pc IMXF5-A
SKU
439692
Brand
MPN
IMXF5-A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$5,065.00
Buy Now And Earn 5065 Reward Points!

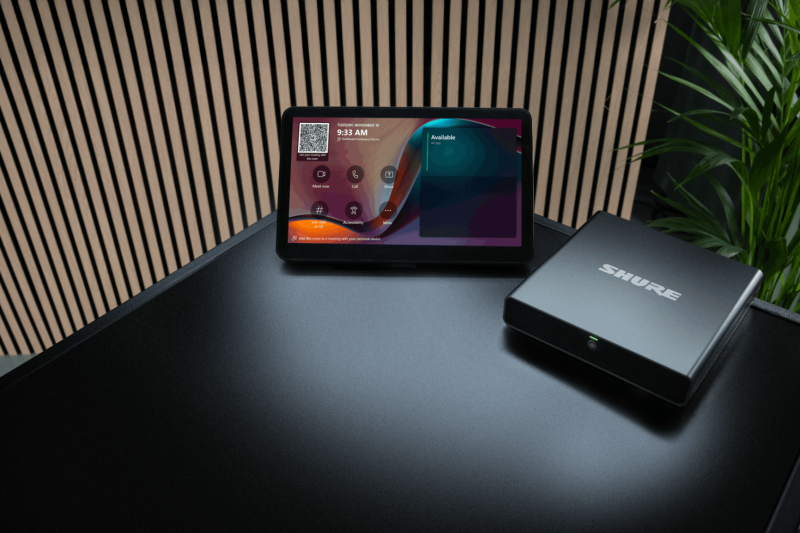

Windows-based Teams Rooms Compute with built-in IntelliMix Room DSP is optimized for Shure’s extensive portfolio of audio products certified for Microsoft Teams. It provides unparalleled flexibility to deliver pristine audio quality in spaces that require tailored solutions. The high-resolution Touch Panel provides intuitive controls and a convenient content ingest port for effective, people-centric meeting experiences.
2 years manufacturing warranty
2 years manufacturing warranty
| Operating Temperature Range | 0°C (32°F) to 40°C (104°F) |
| Storage Temperature Range | −20°C (−4°F) to 60°C (140°F) |
| CPU | 12th generation Intel Core i5 processor |
| Memory | 16 GB DDR4 |
| Storage | 256 GB |
| Graphics | Intel UHD Graphics for 12th generation Intel processors |
| Operating System | Windows 11 loT Enterprise |
| Software | Microsoft Teams Rooms and IntelliMix Room (8-channel) |
| Inputs and Outputs | RJ45 (LAN) x 1 , RJ45 (To touch console) x 1, USB-A 3.0 x 4, HDMI out x 3, Power (DC IN) x 1 |
| Bluetooth Frequency Range | 2402 MHz to 2480 MHz |
| Bluetooth Output Power | 20 dBm EIRP maximum |
| BLE | 10 dBm EIRP maximum |
| WLAN Frequency Bands | 2.4 GHz and 5 GHz |
| WLAN Output Power | Country-dependent |
| Antenna Type | Integral |
| Power Supply | FSP120-ABBN3 |
| Power | 120 W maximum |
| Resolution | 1920 x 1080 |
| Frequency Refresh Rate | 60 Hz |
| Motion Sensor | PIR sensor for automatic wake-up |
| Connections | Audio out (3.5 mm) x 1 , USB-C (Content sharing) x 1 , USB-A 2.0 x 1 , RJ45 (To compute) x 1 |
| Delivered by DisplayLink over Cat6 | 52V DC (0.49 A) |
| Power Consumption | 13 W maximum |
| Cable Requirements for Compute to Touch Panel | Cat6, shielded cable recommended |
| Maximum Cable Length for Compute to Touch Panel | Shielded Cable 200 ft. (60.9 m) , Unshielded Cable 30 ft. (9 m) |
Windows-based Teams Rooms Compute with built-in IntelliMix Room DSP is optimized for Shure’s extensive portfolio of audio products certified for Microsoft Teams. It provides unparalleled flexibility to deliver pristine audio quality in spaces that require tailored solutions. The high-resolution Touch Panel provides intuitive controls and a convenient content ingest port for effective, people-centric meeting experiences.
