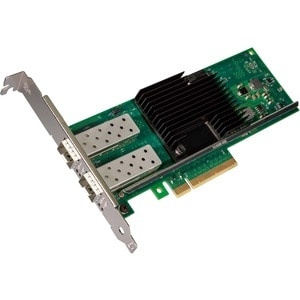

Intel Ethernet X710da2 Svr Single X710da2
Status Launched
Launch Date Q4'14
Vertical Segment Server
Cable Medium Copper
Cabling Type SFP+ Direct Attached Twin Axial Cabling up to 10m
Bracket Height Low Profile and Full Height
Ethernet Controller Intel® Ethernet Controller X710-AM2
Product Brief Link
-Networking Specifications
# of Ports Dual
System Interface Type PCIe v3.0 (8.0 GT/s)
Intel® Virtualization Technology for Connectivity (VT-c) Yes
Speed & Slot Width 8.0 GT/s, x 8 Lane
Controller Intel(R) X710
-Package Specifications
Low Halogen Options Available See MDDS
-Advanced Technologies
iWARP/RDMA No
Intel® Ethernet Power Management Yes
Intel® Data Direct I/O Technology Yes
Intelligent Offloads Yes
Storage Over Ethernet iSCSI NFS
-Intel® Virtualization Technology for Connectivity
On-chip QoS and Traffic Management Yes
Flexible Port Partitioning Yes
Virtual Machine Device Queues (VMDq) Yes
PCI-SIG* SR-IOV Capable Yes
| Marketing Text | The Intel Ethernet Converged Network Adapter X710 family addresses the demanding needs of the next-generation agile data center, by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven, reliable performance. |
| PI Date | Mar 2015 |
| Brand Name | Intel |
| Manufacturer Web Site | http://www.intel.com |
| Product Type | Ethernet Adapter |
| Form Factor | Low Profile |
| No. of Ports | 2 |
| Bus Type | PCIe Express 3.0 x8 |
| Throughput | 80Gbps |
| Port Type | SFP+ |
| Bracket Type | Full Height |
| Other Features | * Intelligent offloads * Intel Virtualization Technology * Storage over Ethernet |
