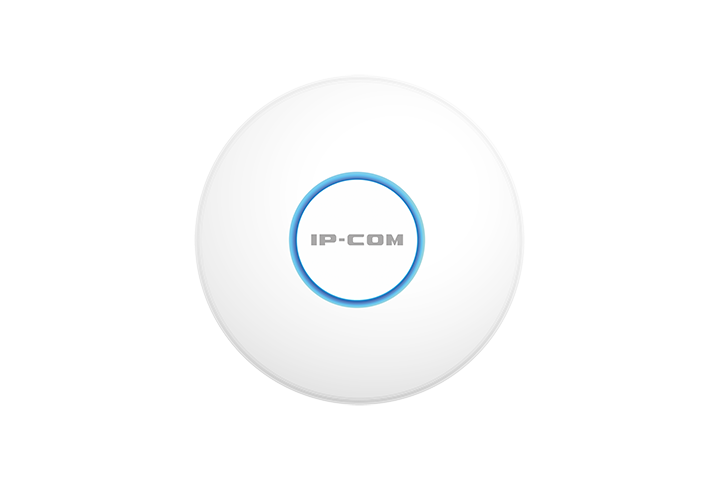

IP-COM (iUAP-AC-LITE)AC1200 Wave 2 Gigabit Access Point
SKU
387773
Brand
MPN
iUAP-AC-LITE
Warranty
Standard Manufacturer's Warranty
$137.00
Buy Now And Earn 137 Reward Points!
The IEEE 802.11ac Wave 2-compliant iUAP-AC-LITE is a gigabit dual-band ceiling access point. It offers a concurrent data rate as high as of 1167 Mbps. Powered by MU-MIMO technology, a single iUAP-AC-LITE can simultaneously communicate with multiple clients, greatly improving the throughput and bettering user experience. The built-in omni-directional antennas optimize signal radiating directions, broadening the wireless coverage of a single AP. iUAP-AC-LITE can be powered by PoE sourcing equipment that compliant with IEEE 802.3af/at. With its ceiling installation design and sleek appearance, it simplifies wireless networking for enterprises, hotels and other public indoor spaces.
| Product Information | |
|---|---|
| Model | iUAP-AC-LITE |
| Appearance | Ceiling |
| Dimensions | 176*176*43.5mm |
| Hardware Specifications | |
| Frequency band | 2.4 GHz, 5 GHz |
| Wireless standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| 2.4 GHz data rate | 1 - 300 Mbps |
| 5 GHz data rate | 6 - 867 Mbps |
| Ethernet port | 1*10/100/1000 Base-TX port |
| Button | 1*Reset |
| LED indicator | 1*Power |
| Max. power consumption | Full-load 11.5W |
| Power supply standard | IEEE 802.3af/at&24V0.5A Passive PoE |
| Antenna gain | 2*4 dBi |
| 2.4 GHz Max. output power | 26+/- 1.5 dBm |
| 5 GHz Max. output power | 26 +/-1.5 dBm |
| 802.11b RX sensitivity | -93 dBm |
| 2.4 GHz 802.11n (MCS7) RX sensitivity | -72 dBm |
| 5 GHz 802.11a RX sensitivity | -93 dBm |
| 5 GHz 802.11n (MCS7) RX sensitivity | -74 dBm |
| Software Specification | |
| Operating modes | AP, Client + AP |
| Hide SSID | Supported |
| Max. No. of SSID | 2.4 GHz:8 5 GHz:4 |
| Max. connected clients | 2.4 GHz:128 5 GHz:256 |
| WEP | Supported |
| WPA-PSK | AES/TKIP |
| WPA2-PSK | AES/TKIP |
| WPA | Supported |
| WPA2 | Supported |
| Access control | MAC address-based |
| Adjustable power transmit | Supported |
| Frequency analysis | Supported |
| AP isolation | Supported |
| Connected clients control | Supported |
| RSSI threshold | Supported |
| Transmission Power | Adjustable power by 1dBm |
| WMM | Supported |
| VLAN tagging for SSID | Supported |
| LED indicator control | Supported |
| Diagnostics tool | Ping, Traceroute |
| Scheduled reboot | Supported |
| Reboot at specified interval | Supported |
| Management | Web UI |
| System logs | Supported |
| Firmware upgrade | Local and AC upgrade |
| Reboot | Local and AC reboot |
| Reset | Local and AC reset |
| Backup configuration | Supported |
| Restore configuration | Supported |
| Operating Environment | |
| Default login IP address | 192.168.0.254 |
| Default user name | admin |
| Default password | admin |
| Operating temperature | -10℃ - 45℃ |
| Operating humidity | (10%-90%) RH, non-condensing |
| Storage temperature | -30℃ - 70℃ |
| Storage humidity | (10%-90%) RH, non-condensing |
