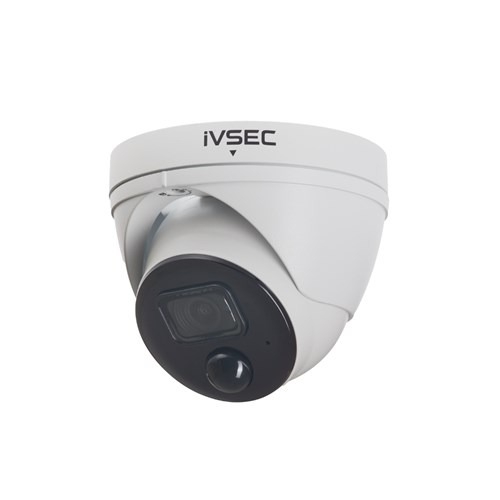

The IVSEC NC323XD is an 8MP turret-style security camera designed for outdoor use, featuring a robust IP66 weatherproof and vandal-resistant housing. It utilizes a SONY Starvis sensor to provide exceptional image quality, especially in low-light conditions. The camera captures video at a resolution of up to 3840x2160 pixels and a frame rate of 20fps, ensuring clear and detailed footage. Its 3.6mm fixed lens provides an 88° horizontal field of view, making it suitable for a wide range of surveillance applications. The NC323XD also includes a built-in microphone for audio streaming.

This camera is equipped with advanced intelligent video (IVS) features that include human and vehicle detection, perimeter intrusion detection, and line crossing detection, which help to minimise false alarms and provide more accurate security alerts. It supports multiple video compression formats, including H.265+ and H.264+, to optimise storage and bandwidth usage without compromising on video quality. With a maximum IR night vision distance of 30m, the NC323XD delivers reliable surveillance even in complete darkness.

Installation is made simple with Power over Ethernet (PoE) support, allowing both power and data to be transmitted over a single Ethernet cable. The camera is ONVIF compliant, ensuring compatibility with a wide range of surveillance systems and third-party software. It also offers edge recording capabilities with a microSD/SDHC card slot for local storage backup. For added convenience, the camera supports cloud storage via Dropbox.

The IVSEC NC323XD is a comprehensive and reliable security solution that is easy to install and manage. It comes with free software, a quick user guide, and mounting accessories right in the box. Its durable design and advanced features make it an ideal choice for residential and commercial security installations, providing peace of mind with continuous, high-quality monitoring.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES
8MP high-resolution video capture with a SONY Starvis sensor
Intelligent Video (IVS) features including human and vehicle detection
Vandal-resistant and IP66 weatherproof housing for outdoor use
30m maximum IR night vision distance
Built-in microphone for audio streaming
Supports Power over Ethernet (PoE) for simplified installation
MicroSD/SDHC card slot for local storage
ONVIF (Profile S/G/T) compliant

SPECIFICATIONS
Camera Type: Turret
Image Sensor: 1/2.8" 8MP Progressive CMOS
Maximum Video Resolution (Megapixels): 8
Maximum Video Resolution: 3840x2160
Frames Per Second (FPS): 20
Lens: 3.6mm (H.FOV: 88°)
Lens Type: Fixed
Maximum Night IR Distance: 30m
LED: IR
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
ONVIF: ONVIF (Profile S/G/T) 21.12 or greater, HTTP API
Outdoor Use: Yes
IP Rating: IP66
Vandal Resistant: Yes
Day/Night Mode: Auto
Image Enhancement: Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
Intelligent Video (IVS): Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare sound detection
Edge Recording: MicroSD/SDHC Card
Multiple Streams: 3 Streams
Software: Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
Protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code)
Language: English, French, Spanish, Portuguese, German, Italian, Greek, Danish, Finnish, Russia, Hebrew, Turkish, Bulgarian, Arabic, Korean, Japanese, Thai, Hindi, Romanian, Dutch, Polish
Cloud option (camera only): Dropbox
Audio Streaming: Yes (microphone included)
Ethernet: Ethernet (10/100 Base-T)
Power Over Ethernet: Yes
Power Supply: Power over Ethernet IEEE 802.3af, DC12V
Power Consumption: < 7W
Connectors: RJ-45, DC Power Input, Reset Button
Operating Environment: -30~+55°C / ≤95% RH
Product Dimensions (H×W×L): 100×100×100mm
Packaging Dimensions (H×W×L): 120×140×140mm
Weight (Net): 0.44kg
Weight (Gross): 0.53kg

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

3 Year Warranty
