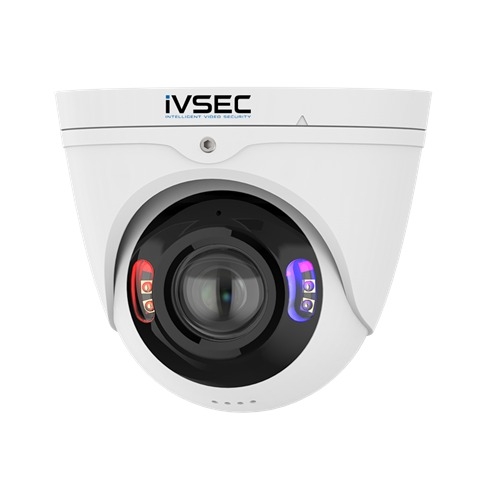

The IVSEC NC543ADX is a cutting-edge turret IP camera engineered for high-performance surveillance. With an impressive 8-megapixel resolution and a panoramic 180° field of view, it delivers unparalleled coverage and clarity, ensuring every detail is captured with exceptional precision. The camera's advanced features, including intelligent video analytics and multiple LED illuminators, make it a versatile solution for a wide range of security applications.

Designed for durability and reliability, the NC543ADX is suitable for outdoor use, boasting an IP67 rating for water resistance and an IK10 vandal-resistant rating. Its robust construction ensures it can withstand harsh environments and potential tampering, providing peace of mind. The inclusion of two-way audio with a built-in microphone and speaker allows for remote communication and a further layer of security and deterrence.

Installation is streamlined with Power over Ethernet (PoE) support, which allows a single Ethernet cable to transmit both power and data. The camera also offers flexible recording options, including edge recording via a microSD/SDHC card and cloud-based storage through Dropbox, giving you multiple ways to secure your footage. The comprehensive software suite, including a mobile app and surveillance client, makes it easy to manage and monitor your security system from anywhere.

With a wide array of intelligent video functions like face recognition, pedestrian and vehicle detection, and licence plate recognition, the NC543ADX provides proactive security by identifying potential threats and reducing false alarms. Its sophisticated features and user-friendly design make it an ideal choice for both residential and commercial surveillance needs.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES
8-megapixel resolution
180° panoramic view
Built-in IR, Red & Blue, and Warm White LEDs for versatile night vision and deterrence
Two-way audio with built-in microphone and speaker
IP67 weather-resistant and IK10 vandal-resistant ratings
Power over Ethernet (PoE) support
Intelligent Video (IVS) includes Face Recognition, Pedestrian & Vehicle Detection, Line Crossing, Object Detection, Cross Counting, Heat Map, Crowd Density, Queue Length, Licence Plate Recognition, Intrusion, Region Entrance, and Region Exiting
Edge recording to microSD/SDHC card
Multiple video streams
Cloud option via Dropbox
Wide operating temperature range from -30°C to 60°C

SPECIFICATIONS
Camera Type: Panoramic
Image Sensor: 1/2.7" Progressive CMOS
Maximum Video Resolution: 3840x2160
Frames Per Second (FPS): 30
Lens: 2.8mm (180°) Panoramic
Maximum Night IR Distance: 30m
Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, PPPOE
Power Supply: Power over Ethernet IEEE 802.3at, DC12V
Power Consumption: <14W
Connectors: RJ-45, DC Power Input, Reset Button
Weight (Net): 0.80kg
Weight (Gross): 0.50kg
Product Dimensions (H×W×L): 127×136×136mm
Packaging Dimensions (H×W×L): 150×150×150mm

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

3 Year Warranty
