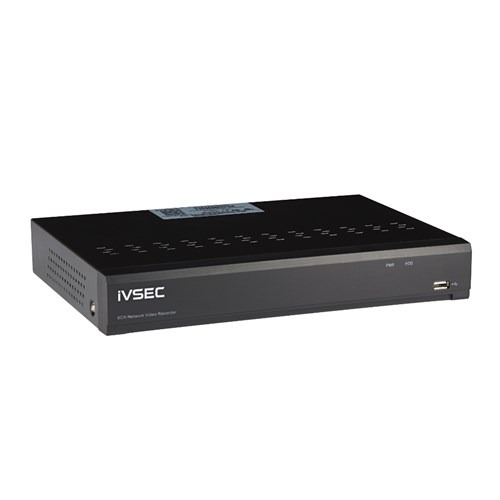

The IVSEC NR008XA is a compact yet powerful 8-channel PoE Network Video Recorder (NVR) designed to meet the demands of everyday surveillance for both residential and commercial applications. This NVR provides seamless recording and monitoring for up to eight IP cameras, making it a perfect solution for small to medium-scale security setups. Its Power over Ethernet (PoE) feature simplifies installation by delivering power and data over a single Ethernet cable to each connected camera, which significantly reduces setup complexity and cost.

Equipped with advanced H.264 and H.265 compression technology, the NR008XA efficiently manages and saves hard drive storage space while maintaining high-quality video. It supports a single hard disk drive (HDD) of up to 16TB, providing generous storage for extended retention of crucial footage. The NVR is also compatible with a range of intelligent video analytics, including motion detection, perimeter intrusion detection, and human and vehicle detection, allowing for smarter and more precise monitoring when used with compatible cameras.

With ONVIF Profile S/G/T compatibility, this NVR seamlessly integrates with IVSEC X range cameras and other third-party IP cameras, offering a flexible and adaptable security solution. It provides multiple search methods, including continuous, scheduled, and event-triggered searches with IVS filtering, making it easy to find specific footage. Remote control of the NVR and cameras is possible through the free Video Management System (VMS) for PCs, web browsers, and the powerful "IVSEC X" mobile app, ensuring you can monitor your property from anywhere at any time.

The IVSEC NR008XA is an ideal choice for anyone seeking a high-capacity, easy-to-manage, and efficient surveillance system. Its robust feature set and straightforward installation make it a top-tier choice for securing your home or business with a reliable, scalable, and intelligent security system.

To download the IVSEC X app and access support resources, please visit the IVSEC support page.

FEATURES
8 PoE channels for simple plug-and-play installation with IVSEC X range cameras
Supports up to 8MP resolution cameras
H.264, H.264+, H.265, H.265+, and MJPEG video compression to save storage space
Supports a single HDD up to 16TB
Intelligent Video Surveillance (IVS) features including motion detection, perimeter intrusion detection, and face recognition (camera dependant)
Two-way audio streaming
Remote access via the "IVSEC X" mobile app and free VMS for PCs
ONVIF Profile S/G/T for broad camera compatibility

SPECIFICATIONS
Maximum Channels: 8
Maximum Video Resolution: 8MP
Video Input Bandwidth: 76Mbps
Video Compression: H.264, H.264+, H.265, H.265+, MJPEG
Video Output Resolution: 4K, HD-1080p, HD-720p, 1.3MP, D1, VGA
HDD Bays: 1 x 3.5" SATA HDD slot
Total Storage Potential: 16TB
Non-PoE Ports: 1 x RJ-45 Gigabit Ethernet port
PoE Ports: 8 x PoE+ ports
PoE: Yes
Power Supply: DC 48V, 1.2A
Power Consumption: 5W (Without HDD)
Connectors: 2 x USB2 Female, 1 x HDMI, 1 x VGA, 1 x Audio In and 1 x Audio Out, Power Jack Input, On/Off switch
Operating Environment: 5°C to 40°C
Dimensions (H x W x L): 53 x 300 x 227mm
Weight (Net): 1.30kg

IVSEC products are designed to work together to form a comprehensive security system that can be integrated with Control4 smart home systems. For the full list of features and the most current technical specifications, you can download the necessary drivers and view the installation guide here.

WARRANTY

2 Years Parts
