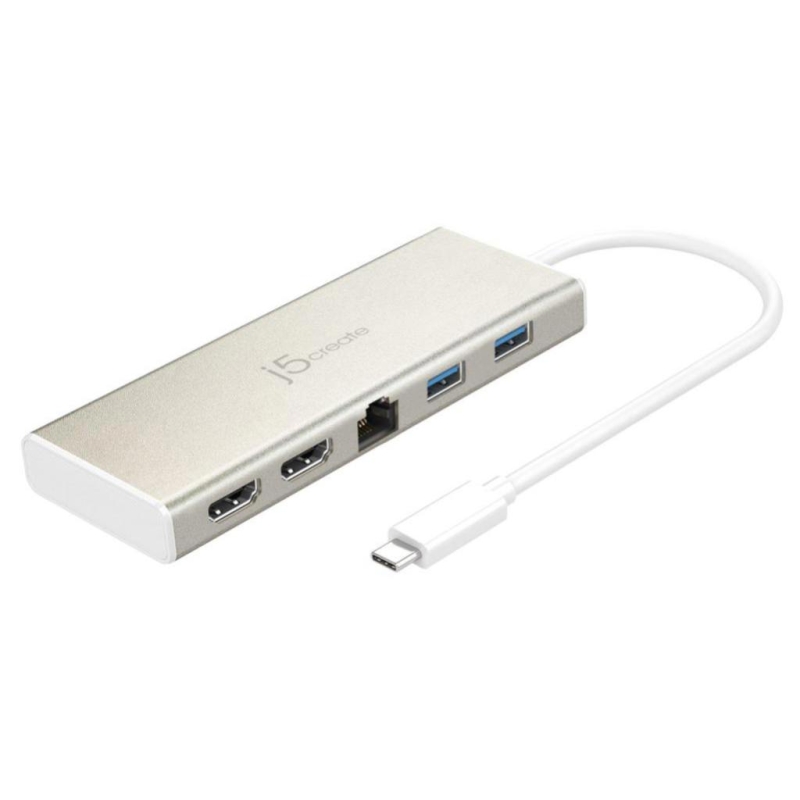

J5Create Jcd381 Usb-C Dual Hdmi 2K/ 4K Mini Dock (Usb-C To 2 X Hdmi Gigabit Ethernet Rj-45 2 X
QUICK OVERVIEW
- • When using one HDMI™ port the max resolution is: 4K @ 30 Hz
- • When using two HDMI™ ports the max resolution is: 1080p @ 60 Hz
- • Easily add an additional display through a USB™ 3.0 and HDMI™ connection
- • Video playback performs at 1080p HD with a resolution of up to 4K @ 30 Hz
- • Add an additional monitor without adding an expensive, internal video card, avoiding complicated installation
- • Hot swappable USB™ enables you to add or remove monitors without rebooting your system
- • Move and view your large spreadsheets across two screens without overlapping windows
- • Multitask with larger landscape/desktop space
- • Ideal for viewing multiple windows at the same time
USB™ 3.0 SuperSpeed
- • Transfer rates of up to 5 Gbps enables bulky file backup
- • Backwards compatible with USB™ 2.0 and USB™ 1.1 devices
- • Hot-swapping connect/disconnect without powering down
- • Great for multitasking in a wide variety of applications including: phone centers, stock markets, hospitals, graphic design, editing, accounting, etc.
- • A must have for surfing the web and working on your e-mail/Facebook/Twitter accounts all at the same time.
Gigabit Ethernet
- • Quickly add a Gigabit Ethernet port
- • IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- • Activity and Link LED indicators
j5 Advantages
- • Add multiple screens, one up to 4K high resolution.
- • Add 2 additional USB™ ports through your USB-C™ port.
- • Supports upstream charging & power delivery 2.0 via USB Type-C™ charging port
- • Use with j5create’s JUP42 PD charging station for ultimate functionality.
The USB Type-C™ Dual HDMI™ Mini Dock provides extra connectivity from your computer with 5 Gbps faster transfer speed. This portable docking station allows you to add additional USB™computer peripherals, two HDMI™ monitors (one 4K and one 2K), or a Gigabit LAN through your USB™ port. When connected with a power source, the USB Type-C™ input charging port allows you to continue charging your notebook or smartphone.
USB Type‐C™ is the new standard for connecting PCs and laptops and will eventually replace all current USB™ cables and connectors. This new USB™ standard can be found on laptops, phones, tablets, etc. The USB Type-C™ has a slim and reversible design, so there is no wrong way to plug it in. USB Type-C™ offers greater power delivery and faster data transfer rates of up to 5 Gbps.
Interface | |
Host Interface | USB Type-C™ 3.1 Gen 1 Male |
Video Interface | HDMI Type-A Female Connector x 2 |
Ethernet Port | Gigabit Ethernet RJ-45 Female Connector |
USB™Type-A Port | USB™ 3.0 Female connector x 2 |
USB Type-C™ Port | USB Type-C™ Power In x 1 port (Supports upstream charging and power delivery 2.0) |
Power | |
Power Mode | Bus-powered or self-powered |
Functions | |
Display | Max Resolution 4K @ 30 Hz / 1080p @ 60 Hz |
Ethernet | Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex) IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x Modes:
|
Physical Specifications | |
Dimensions | Main body: 5.1 (W) x 2.1 (H) x 0.6 (D) in. 130 (W) x 54 (H) x 15 (D) mm Cable length: 7.8 in. Cable length: 20 cm |
Weight | Approximately: 0.25 lbs/ 113.5 g |
Aspect Ratio | Resolution | Color Depth |
| ||
16:9 | 3840 x 2160 | 32 bits |
8:5 | 2560 x 1600 | 32 bits |
16:9 | 2048 x 1152 | 32 bits |
16:10 | 1920 x 1200 | 32 bits |
16:9 | 1920 x 1080 | 32 bits |
16:10 | 1680 x 1050 | 32 bits |
16:9 | 1600 x 900 | 32 bits |
16:10 | 1440 x 900 | 32 bits |
16:9 | 1600 x 900 | 32 bits |
16:10 | 1440 x 900 | 32 bits |
16:9 | 1366 x 768 | 32 bits |
16:10 | 1360 x 768 | 32 bits |
16:9 | 1280 x 800 | 32 bits |
16:10 | 1280 x 768 | 32 bits |
16:9 | 1280 x 720 | 32 bits |
| ||
4:3 | 1600 x 1200 | 32 bits |
4:3 | 1400 x 1050 | 32 bits |
5:4 | 1280 x 1024 | 32 bits |
4:3 | 1280 x 960 | 32 bits |
4:3 | 1152 x 864 | 32 bits |
4:3 | 1024 x 768 | 32 bits |
4:3 | 800 x 600 | 32 bits |
4:3 | 640 x 480 | 32 bits |
System Requirements
- macOS® X 10.8 or later
- Available USB™ 3.0/2.0 port (USB™ 3.0 recommended)
- Available USB Type-C™ port (USB™ 3.1 is recommended)
- Available USB™ power delivery over USB Type-C™ to support upstream charging
- Microsoft® Windows® 10/ 8.1/ 8/ 7 (32-bit or 64-bit) compatible
- Office applications / Web browsers
CPU: Intel® Core i3 Dual Core 2.8 GHz
RAM: 2 GB memory or higher
- One 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core i5 Quad Core
RAM: 4 GB memory or higher
- One 4K Ultra HD or two 2K (2048 x 1152 @ 60 Hz) full-screen video playback
CPU: Intel® Core i7 Quad Core
RAM: 8 GB memory or higher
Graphics card: Intel® HD Graphics 4000/ ATI HD 7xxx/ NVIDIA 5XXM or higher
Note for Video Player:
Windows® 8.1/8/7 users: Windows® Media Player is recommended for video playback
Windows® 10 users: Movies & TV is recommended for video playback
Package Contents
- USB Type-C™ Dual HDMI™ Mini Dock (JCD381)
- Driver CD
- Quick Installation Guide
⚫Dual Display HDMI 4K + 2K
⚫Power Delivery
⚫2-Port USB 3.0 supports transfer speeds up to 5 Gbps.
⚫Small, Compact, and Lightweight
⚫Supports two displays - max resolution: 4K @ 30 Hz / 1080p @ 60 Hz
⚫IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T) compatible
