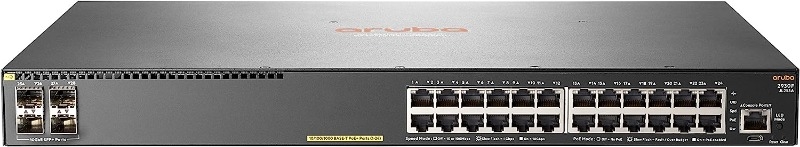

Hewlett Packard Enterprise ARUBA 2930F 24G POE+ 4SFP+ SWCH JL255A#ABG
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What's New
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
- Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
- Scale with 8 chassis VSF stacking.
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
Product Differentiator (long)Popular Aruba 28-port Gig + 10G access switch with 370 Watts PoE+ power. This model has 24x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.
Power Consumption Description445 W (maximum)
Heat Dissipation258 BTU/hr (272.2 kJ/hr)
Input Voltage100 - 127 / 200 - 240 VAC, rated
External I/O Ports(24) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP+ 1/10GbE ports PHY-less
Latency1000 Mb Latency: < 3.8 µs 10 Gbps Latency: < 1.6 µs
Switching Capacity128 Gbps
Throughputup to 95.2 Mpps
Memory and ProcessorDual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.785 Egress 4 GB eMMC
PoE Capability370 W PoE+
Management FeaturesAruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Warranty Standard StatementLimited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Weight (imperial)8.6 lb
Weight (metric)3.9 kg
Product Dimensions (imperial)1.73 x 17.42 x 11.98 in
Product Dimensions (metric)4.39 x 44.25 x 30.42 cm
