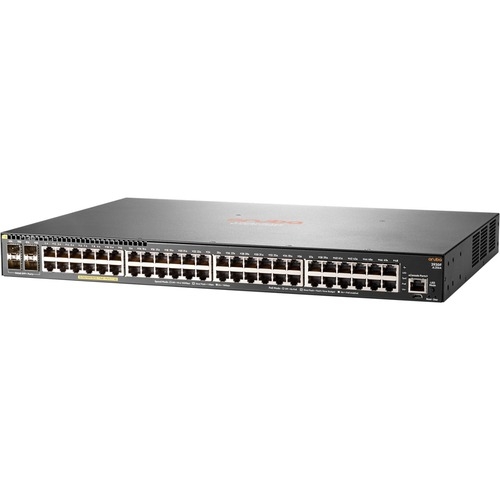

HPE ARUBA 2930F 48G POE+ 4SFP+ SWCH JL256A#ABG
ARUBA 2930F 48G POE+ 4SFP+ SWCH
The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.
A powerful Aruba ProVision ASIC delivers performance , robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.
The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
ENHANCED CAPABILITIES | Unified Wired and Wireless Support
- Supports unified wired and wireless policies using Aruba ClearPass Policy Manager
- Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected
- User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
- For improved network simplicity and security, Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end users alike
- Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
- Static IP visibility allows ClearPass to do accounting for clients with a static IP address
- Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting
- Traffic prioritization (IEEE 802.1p) for classification into eight priority levels mapped to eight queues
- Layer 4 prioritization based on TCP/UDP port numbers
- Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
- Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
- Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
- Software defined ready with REST APIs and OpenFlow support
- Simple deployment with Zero Touch Provisioning
Manageable | Yes |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Expansion Slot Type | SFP+ |
Number of Total Expansion Slots | 4 |
Number of SFP+ Slots | 4 |
Network (RJ-45) | Yes |
Modular | Yes |
Uplink Port | Yes |
Total Number of Network Ports | 48 |
Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
48 x Gigabit Ethernet PoE+ |
Layer Supported | 3 |
Networking Standards | IEEE 802.3az |
IEEE 802.3at | |
IEEE 802.3af | |
IEEE 802.3ad | |
IEEE 802.3ab | |
IEEE 802.3 | |
IEEE 802.3u | |
IEEE 802.1x | |
IEEE 802.1w | |
IEEE 802.1v | |
IEEE 802.1s | |
IEEE 802.1Q | |
IEEE 802.1p | |
IEEE 802.1D | |
IEEE 802.1ab |
Network Technology | 10GBase-X |
1000Base-T | |
Ethernet Technology | 10 Gigabit Ethernet |
Gigabit Ethernet | |
Media Type Supported | Optical Fiber |
Twisted Pair |
Weight (Approximate) | 4.46 kg |
Form Factor | Rack-mountable |
Height | 43.9 mm |
Width | 442.5 mm |
Depth | 304.2 mm |
Compatible Rack Unit | 1U |
Power Source | Power Supply |
Frequency | 60 Hz |
50 Hz | |
Power Consumption | 48.60 W |
PoE (RJ-45) Port | Yes |
PoE Budget | 370 W |
Product Type | Layer 3 Switch |
Manufacturer Part Number | JL256A#ABG |
Manufacturer Website Address | https://www.hpe.com/au/ |
Manufacturer | Hewlett Packard Enterprise |
Product Name | 2930F 48G PoE+ 4SFP+ Switch |
Product Series | 2930F |
Brand Name | Aruba |
