HPE ARUBA 2930F 48GPOE+4SFP+740W SWCH JL558A#ABG
ARUBA 2930F 48GPOE+4SFP+740W SWCH

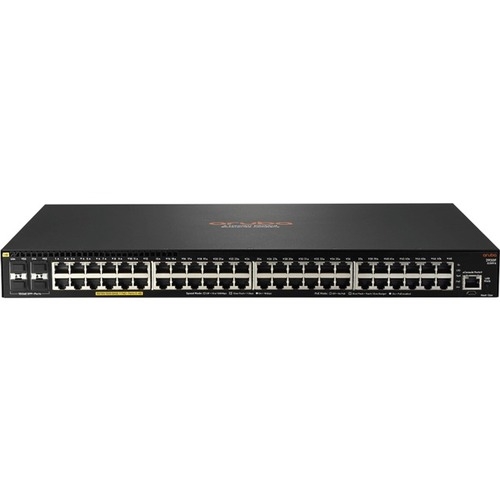

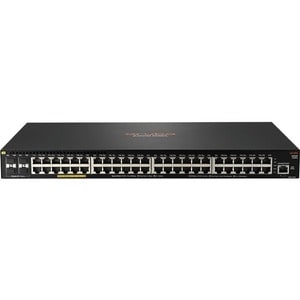

Aruba 2930F Switch Series
The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and PoE power, and are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.
A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required.
The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust basic Layer 3 feature set includes a limited lifetime warranty
- Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, dynamic segmentation, ACLs, and robust QoS
- Supports cloud and on-premises management. And advanced policy management using Aruba ClearPass
- Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
- Software-defined ready with REST APIs and OpenFlow support
- Simple deployment with Zero Touch Provisioning
| Manageable | Yes |
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Slots | 4 |
| Number of SFP+ Slots | 4 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| 4 x 10 Gigabit Ethernet Expansion Slot |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1Q |
| IEEE 802.1p | |
| IEEE 802.1D | |
| IEEE 802.1AX | |
| IEEE 802.1ad | |
| IEEE 802.3x | |
| IEEE 802.3u | |
| IEEE 802.3az | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.3ad | |
| IEEE 802.3ab | |
| IEEE 802.3 | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.1s |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 4.79 kg |
| Form Factor | Rack-mountable |
| Height | 43.9 mm |
| Width | 442.5 mm |
| Depth | 324.4 mm |
| Compatible Rack Unit | 1U |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 49.90 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL558A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 2930F 48G PoE+ 4SFP+ 740W Switch |
| Product Series | 2930F |
| Brand Name | Aruba |
