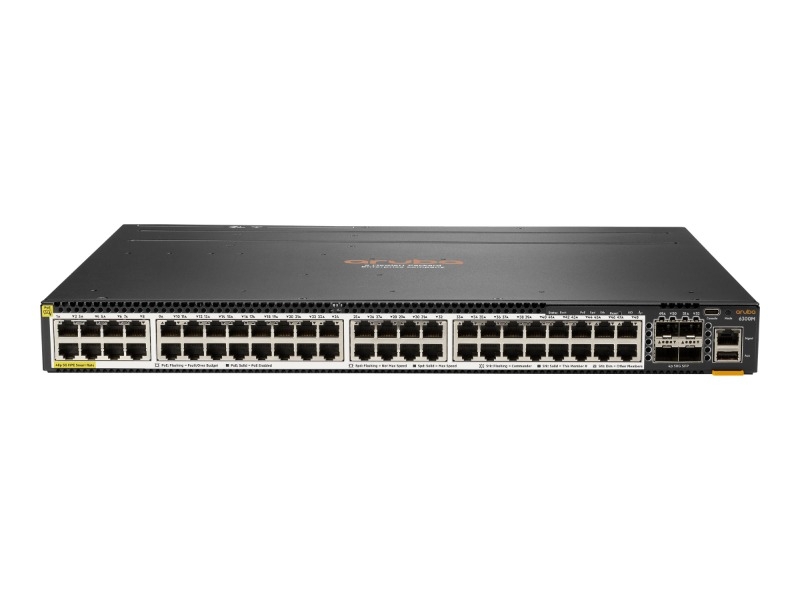

HPE ARUBA 6300M 48SR5 CL6 POE 4SFP56 SWITCH JL659A
SKU
399639
Brand
MPN
JL659A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$23,413.00
Buy Now And Earn 23413 Reward Points!
HPE Aruba 6300M - Switch - L3 - Managed - 48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - PoE+ (2880 W)
| Product Description | HPE Aruba 6300M - switch - 48 ports - Managed - rack-mountable |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | 5 Gigabit Ethernet |
| Ports | 48 x 100/1000/2.5G/5G (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 2880 W |
| Performance | Switching capacity: 880 Gbps ? Throughput: 654 Mpps ? Latency (1 Gbps): 4.24 ?s ? Latency (10 Gbps): 1.5 ?s ? Latency (25 Gbps): 2.91 ?s ? Latency (50 Gbps): 3.49 ?s ? Stacking bandwidth: 200 Gbps |
| Capacity | Switched virtual interfaces (SVIs): 1000 ? IPv4 host table capacity: 32000 ? IPv6 host table capacity: 32000 ? IPv4 routes (Unicast): 64000 ? IPv6 routes (Unicast): 32000 ? IPv4 routes (Multicast): 8000 ? IPv6 routes (Multicast): 8000 ? IGMP groups: 8000 ? MLD groups: 4000 ? IPv4 ACL entries (ingress): 5000 ? IPv6 ACL entries (ingress): 1250 ? MAC ACL entries (ingress): 5000 ? IPv4 ACL entries (egress): 2000 ? IPv6 ACL entries (egress): 500 ? MAC ACL entries (egress): 2000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), LLDP support, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), Strict Priority (SP), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
| Dimensions (WxDxH) | 44.2 cm x 38.5 cm x 4.4 cm |
| Weight | 6.71 kg |
| Manufacturer Warranty | Limited lifetime warranty |
