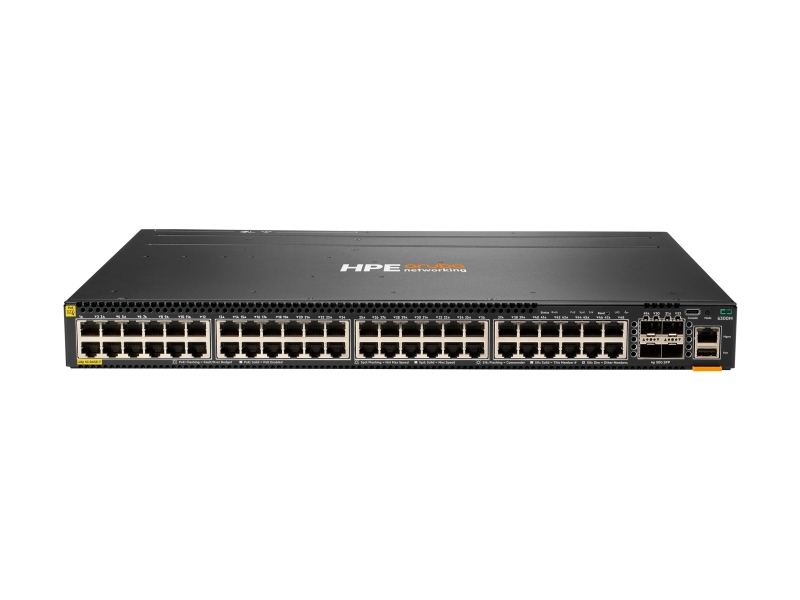

Aruba 6300M 48G CL4 PoE 4SFP56 Switch JL661A
SKU
307860
Brand
MPN
JL661A
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$17,980.00
Buy Now And Earn 17980 Reward Points!
HPE Aruba 6300M - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - PoE+ (1440 W)
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Weight | 5.72 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Switched virtual interfaces (SVIs): 1000 ? IPv4 host table capacity: 32000 ? IPv6 host table capacity: 32000 ? IPv4 routes (Unicast): 64000 ? IPv6 routes (Unicast): 32000 ? IPv4 routes (Multicast): 8000 ? IPv6 routes (Multicast): 8000 ? IGMP groups: 8000 ? MLD groups: 4000 ? IPv4 ACL entries (ingress): 5000 ? IPv6 ACL entries (ingress): 1250 ? MAC ACL entries (ingress): 5000 ? IPv4 ACL entries (egress): 2000 ? IPv6 ACL entries (egress): 500 ? MAC ACL entries (egress): 2000 |
| Features | DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, High Availability, PVST, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, UDLD, Rapid PVST+, DWRR, LLDP support, MIB, DHCP protection, dual firmware images, MVRP, packet storm protection, CoS, SP, broadcast storm protection, ToS, BPDU, VXLAN, Multicast Storm Protection, NTP, RA guard, ZTP, PIM, VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Aruba VSF, dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft NLB |
| PoE Budget | 1440 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 496 Gbps ? Throughput: 369 Mpps ? Latency (1 Gbps): 2.28 ?s ? Latency (10 Gbps): 1.46 ?s ? Latency (25 Gbps): 1.9 ?s ? Latency (50 Gbps): 3.49 ?s ? Stacking bandwidth: 200 Gbps |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Routing Protocol | EGP, BGP-4, IGMPv2, IGMP, VRRP, OSPFv2, IGMPv3, OSPFv3, MSDP, static IPv6 routing, ECMP, MLD, Bidirectional Forwarding Detection (BFD) |
| Dimensions (WxDxH) | 44.2 cm x 38.5 cm x 4.4 cm |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt |
| Jumbo Frame Support | 9198 bytes |
| Product Description | HPE Aruba 6300M - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32000 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH, CLI, XRMON, SFTP |
HPE Aruba 6300M - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - front and side to back - rack-mountable - PoE+ (1440 W)
