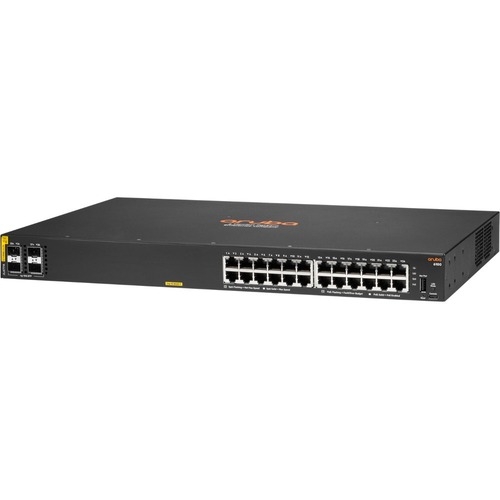

HPE ARUBA 6100 24G CL4 4SFP+ SWCH JL677A#ABG
SKU
398315
MPN
JL677A#ABG
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$2,125.00
Buy Now And Earn 2125 Reward Points!
ARUBA 6100 24G CL4 4SFP+ SWCH
Aruba 6100 Switch SeriesThe Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.
The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient builtin high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements..
Features
- Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- Compact and fanless 12 port model for quiet deployment
- Automated configuration and verification with Aruba NetEdit
- Software defined ready with REST APIs
- Simplify adds, moves and changes with colorless ports
Management & Protocols
| Manageable | Yes |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of Total Expansion Slots | 4 |
| Number of SFP+ Slots | 4 |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE |
Interfaces/Ports
| Network (RJ-45) | Yes |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet PoE+ |
Network & Communication
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1p |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3at | |
| IEEE 802.3az | |
| IEEE 802.3x | |
| IEEE 802.1ab | |
| IEEE 802.1D | |
| IEEE 802.1Q | |
| IEEE 802.1s |
Media & Performance
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | JL677A#ABG |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | 6100 24G Class4 PoE 4SFP+ 370W Switch |
| Product Series | 6100 |
| Brand Name | Aruba |
Physical Characteristics
| Weight (Approximate) | 4.19 kg |
| Form Factor | Rack-mountable |
| Wall Mountable | |
| Height | 43.9 mm |
| Width | 442 mm |
| Depth | 268.2 mm |
| Compatible Rack Unit | 1U |
Power Description
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 22.90 W |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 370 W |
