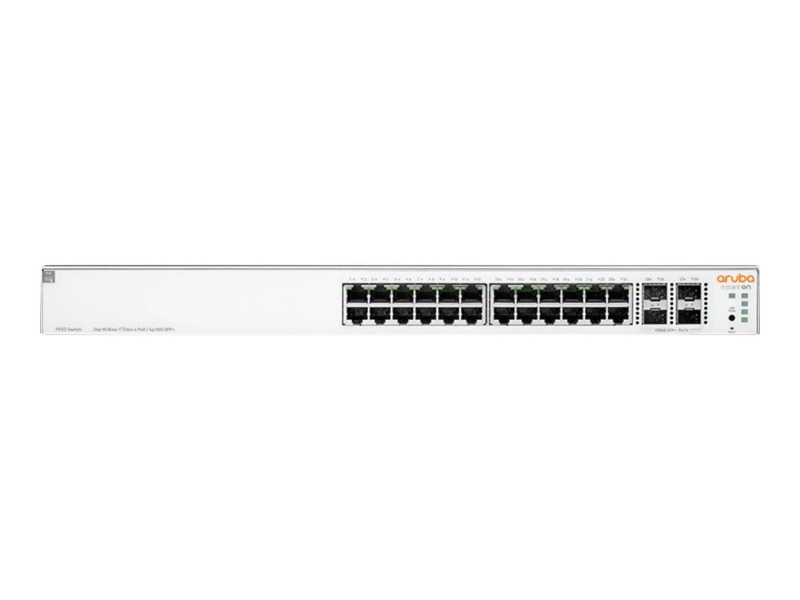

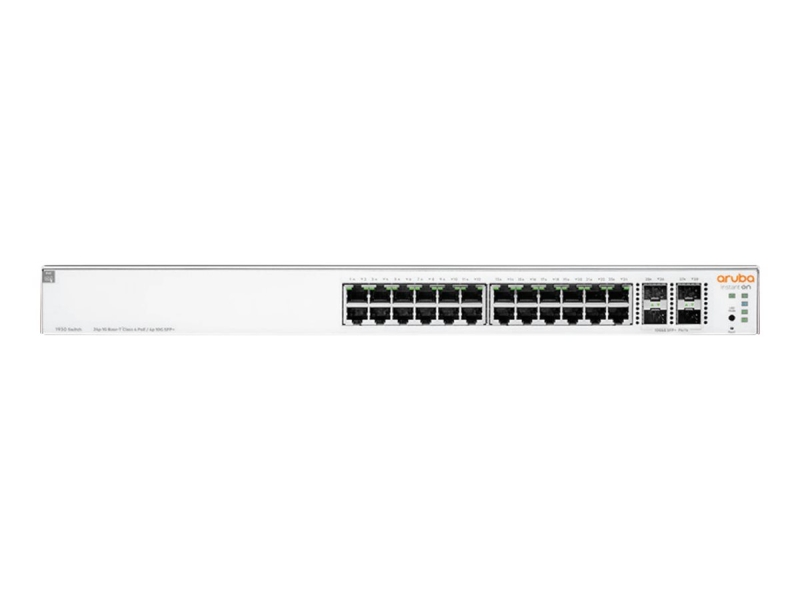

Instant On 1930 24G 4SFP+ 195W Switch JL683B
SKU
408128
Brand
MPN
JL683B
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$746.00
Buy Now And Earn 746 Reward Points!
HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch - Switch - L3 - Managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (195 W)
| Ports | 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Power | AC 100-127/200-240 V (50/60 Hz) |
| Weight | 3.49 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Link aggregation ports: 8 ? IPv4 routes (static): 32 ? VLANs supported: 256 ? Access Control Entries (ACEs) per ACL: 480 ? Packet buffer size: 1.5 MB |
| Features | Flow control, DHCP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Trusted Platform Module (TPM), LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), BPDU Filter, PoE Class 4 |
| PoE Budget | 195 W |
| Device Type | Switch - 28 ports - L3 - Managed |
| Performance | Switching capacity: 128 Gbps ? Throughput: 95.23 Mpps ? Latency (1 Gbps): 2.4 ?s ? Latency (10 Gbps): 1.3 ?s |
| Enclosure Type | Rack-mountable 1U |
| Routing Protocol | Static IP routing |
| Dimensions (WxDxH) | 44.25 cm x 26.47 cm x 4.39 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.2af |
| Jumbo Frame Support | 9216 bytes |
| Product Description | HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch - switch - 28 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 16000 entries |
| Power Over Ethernet (PoE) | PoE |
| Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, RADIUS |
HPE Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch - Switch - L3 - Managed - 24 x 10/100/1000 (PoE) + 4 x 1 Gigabit / 10 Gigabit SFP+ - rack-mountable - PoE (195 W)
