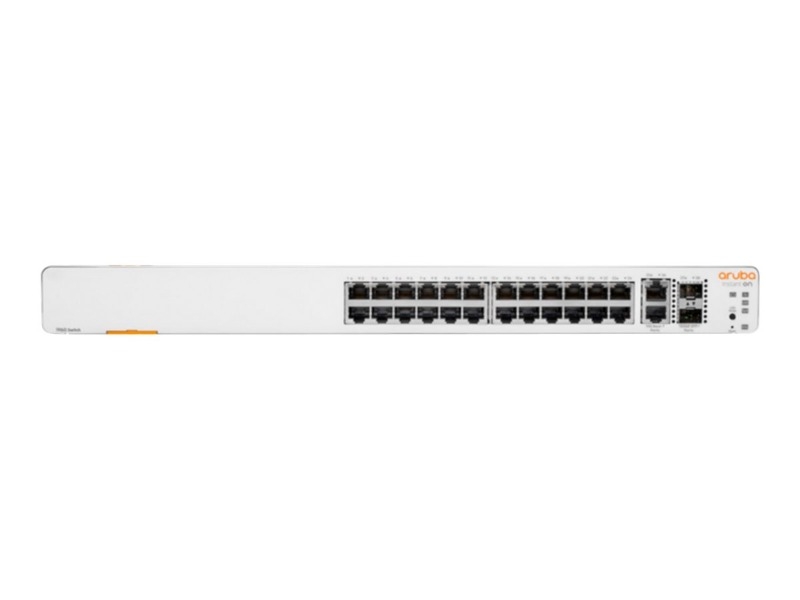

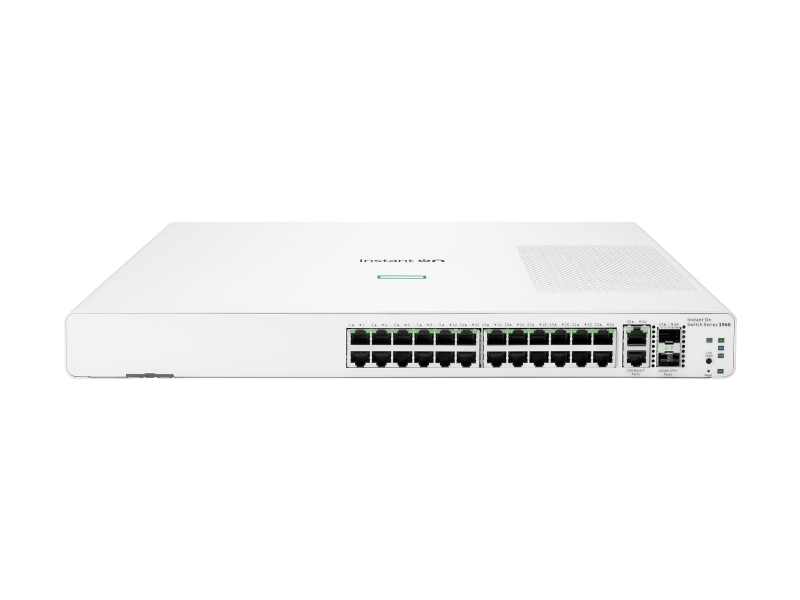

ARUBA INSTANT ON 1960 24G 2XGT 2SFP+ SWITCH JL806A
SKU
382398
Brand
MPN
JL806A
Warranty
Standard Manufacturer's Warranty
$1,207.00
Buy Now And Earn 1207 Reward Points!
HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch - Switch - Managed - 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T - rack-mountable
| Product Description | HPE Aruba Instant On 1960 24G 2XGT 2SFP+ Switch - switch - 24 ports - Managed - rack-mountable |
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 + 2 x 10 Gigabit SFP+ + 2 x 100/1000/10GBase-T |
| Performance | Throughput: 95 Mpps ? Switching capacity: 128 Gbps ? Latency (100 Mbps): 4.4 ?s ? Latency (1 Gbps): 2.2 ?s ? Latency (10 Gbps): 1.1 ?s |
| Capacity | MAC address entries: 16000 ? IPv4 routes (static): 32 ? IPv6 routes (static): 32 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | Static IP routing |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, RADIUS |
| Features | Flow control, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Trusted Platform Module (TPM), fanless, Link Aggregation Control Protocol (LACP), Class of Service (CoS), Energy-Efficient Ethernet (EEE), BPDU Filter, auto voice VLAN, Media Endpoint Discovery (LLDP-MED) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.25 cm x 35.05 cm x 4.395 cm |
| Weight | 3.9 kg |
ARUBA INSTANT ON 1960 24G 2XGT 2SFP+ SWITCH
