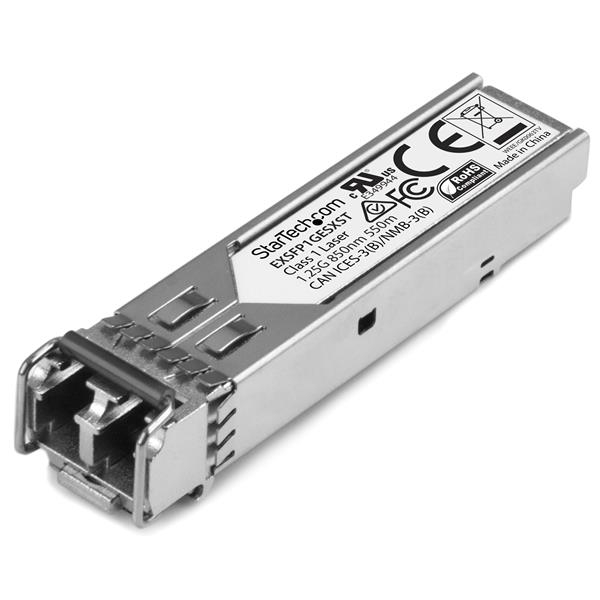

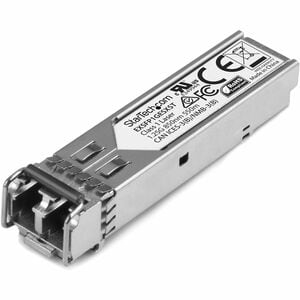

Startech Juniper Ex-sfp-1ge-sx Compatible Sfp - Gigabit Fiber 1000base-sx Sfp Transceiver Module
QUICK OVERVIEW
Overview
This StarTech.com Gigabit fiber SFP is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Juniper Networks® switches and routers that support the Juniper EX-SFP-1GE-SX transceiver module, as well as other major brands of networking equipment.
This 1000Base-SX SFP transceiver module delivers Gigabit connectivity over multimode fiber cable, with a range of up to 550 m (1804 ft.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.
Built for reliable network performance
This multimode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry’s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.
Fully compatible with Juniper Networks and other major brands
The MM Gigabit SFP is engineered to the highest quality standards and is 100% Juniper Networks compatible, equivalent to the Juniper EX-SFP-1GE-SX SFP transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure it works seamlessly with Juniper Networks or other major brands of networking equipment.
You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.
Convenient and scalable
Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that’s compatible with a multitude of Gigabit networking devices.
Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. The SFP supports multimode fiber cable with a maximum distance of 550 m or 1804 ft., and maximum data rates of up to 1.25Gbps. This GbE fiber SFP also supports Digital Diagnostics Monitoring (DDM / DOM).
You can count on EXSFP1GESXST for reliable perfor
Connector(s) | |
Local Unit Connectors | Fiber Optic LC Duplex Female |
Environmental | |
Humidity | 5~95% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | -40?C to 85?C (-40?F to 185?F) |
Hardware | |
Compatible Brand | Juniper |
Industry Standards | IEEE 802.3z 1000BASE-SX |
Packaging Information | |
Shipping (Package) Weight | 46 g [1.6 oz] |
Performance | |
Compatible Networks | 1000 Mbps (1 Gbps) |
DDM | Yes |
Fiber Operating Mode | Full-Duplex |
Fiber Type | Multi Mode |
Max Transfer Distance | 550 m (1804 ft) |
Maximum Data Transfer Rate | 1.25 Gbps |
MTBF | 3,381,761 hours |
Wavelength | 850nm |
Physical Characteristics | |
Color | Silver |
Enclosure Type | Aluminum |
Product Height | 12.5 mm [0.5 in] |
Product Length | 56.6 mm [2.2 in] |
Product Weight | 14 g [0.5 oz] |
Product Width | 13.7 mm [0.5 in] |
Special Notes / Requirements | |
Note | For use in Gigabit fiber networking equipment and media converters |
System and Cable Requirements | MSA or Juniper Networks compliant SFP port |
What's in the Box | |
Included in Package | SFP transceiver |
Marketing Text | This StarTech.com 10 Gigabit fiber SFP+ is engineered to deliver reliable network connections. Built to exacting specifications and fully tested to ensure maximum performance, this high-quality fiber transceiver module can be installed into Juniper Networks switches and routers that support the Juniper EX-SFP-1GE-SX transceiver module, as well as other major brands of networking equipment. |
PI Date | May 2017 |
Brand Name | Startech |
Manufacturer Web Site | http://www.startech.com |
Product Type | Transceivers Module |
Connector | 1 x LC |
Data Transfer Rate | 1.25Gbps |
Maximum Transmission Distance | 550meter |
Slot Type | SFP |
Wavelength | 850nm |
Height (mm) | 12.5 |
Width (mm) | 13.7 |
Weight (Grams) | 14.0 |
Other Features | * Delivers reliable Gigabit Ethernet connections for 1000Base-SX compliant networks * 100% Juniper Networks compatible SFP, equivalent to Juniper EX-SFP-1GE-SX * Backed by lifetime warranty and free lifetime technical support |
