Tenda (K4W-3Tc) 4 Channel Wireless Hd Video Security Kit K4W-3TC
SKU
382884
Brand
MPN
K4W-3TC
Warranty
Standard Manufacturer's Warranty
$321.00
Buy Now And Earn 321 Reward Points!

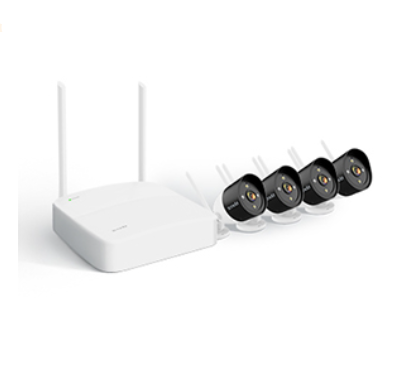

Tenda K4W-3TC 4 Channel Wireless HD Video Security Kit
| SKU | K4W-3TC |
|---|---|
| USB | 1 × USB 2.0 |
| Audio | Built-in microphone and speaker in cameras; full-duplex two-way audio supported |
| Brand | Tenda |
| Model | K4W-3TC V2.0 |
| Category | Physical Security |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Features | 4 wireless channels (1 NVR + 4 cameras) Automatic Wi‑Fi connection and easy networking 3MP high-definition recording H.265 high-efficiency video compression AI S-motion human identification to reduce false alarms Dual spotlights and IR for color night vision Sound and light alarm with push notifications HDMI/VGA output for local display Supports up to 10 TB SATA HDD |
| IP Rating | IP66 (cameras, reported) |
| Megapixels | 3 MP |
| Mobile App | TDSEE (iOS, Android) |
| NVR Weight | 510 g (1.1 lb) |
| Camera Lens | 4 mm, F1.6 |
| Description | Tenda K4W-3TC V2.0 is a 4-channel wireless video security kit that includes one Wi‑Fi Network Video Recorder (NVR) and four Wi‑Fi cameras. Cameras capture 3MP (2304×1296) video and support H.265/H.264 compression, AI S-motion human detection, dual spotlights plus dual IR for full-color night vision (Smart / Full-color / B/W), and sound & white flashing light alarms. The NVR and cameras auto-network over 2.4 GHz Wi‑Fi with dual high-gain antennas for extended range, provide HDMI/VGA outputs, support SATA HDD up to 10 TB, and offer mobile viewing and push notifications via the TDSEE app. |
| Night Vision | Dual IR lights + dual spotlights; 3 night modes: Smart, Full-color, Black & White |
| Power Supply | 12V DC, 2A |
| Sub-Category | Video Surveillance |
| Camera Weight | 226 g (0.5 lb) |
| Field of View | Horizontal 86.1°, Vertical 46°, Diagonal 104° |
| Product Title | Tenda K4W-3TC V2.0 4-Channel Wireless 3MP Wi‑Fi NVR Security Kit (4 Cameras) |
| Video Outputs | HDMI, VGA |
| Alarm Features | Sound and white flashing light alarm; app push notifications (TDSEE) |
| Audio Encoding | G.711A, 8 kHz sampling rate |
| Certifications | CE, FCC, RoHS, SRRC, UKCA |
| NVR Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 in) |
| Auto Networking | NVR automatically searches, finds and adds cameras (automatic connection) |
| Motion Detection | AI S-motion detection with human figure recognition (person detection) |
| Storage Humidity | 5% to 95% RH (non-condensing) |
| Camera Dimensions | 175 × 72 × 72 mm (6.9 × 2.9 × 2.9 in) |
| Camera Resolution | 3 MP (2304 × 1296) |
| Storage Interface | 1 × SATA III (NVR), supports up to 10 TB HDD |
| System Components | 1 × Wi‑Fi Network Video Recorder (NVR), 4 × Wi‑Fi cameras |
| Transmission Rate | Up to 144 Mbps |
| Video Compression | H.265 (primary), H.264 (supported) |
| Wireless Standard | IEEE 802.11b/g/n (2.4 GHz) |
| Night Vision Range | 30 m (IR distance, reported) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Max HDMI Resolution | 2560 × 1440 (2K) |
| Storage Temperature | -30°C to 70°C |
| Web Browser Support | Plug-in free live view: Chrome, Edge, Opera |
| Installation Methods | Wall mounting, ceiling mounting, desk mounting |
| Operating Temperature | 0°C to 40°C |
| Sub Stream Frame Rate | 15 fps (640×360, 352×288) |
| Main Stream Frame Rate | 15 fps (2304×1296, 1920×1080, 1280×720, 640×360) |
| Image Sensor / Matrix Size | 1/2.7" CMOS |
| Kit Contents (as reported) | Wi‑Fi NVR and four Wi‑Fi cameras |
| Wireless Range (advertised) | Up to 200 m open environment; able to pass through up to 3 walls (indoor, reported) |
| Wi‑Fi Hardware / Antennas | Router-level independent Wi‑Fi chip; dual external / dual high-gain antennas |
| Recorder Throughput (reported) | Incoming 60 Mbit/s, Outgoing 60 Mbit/s |
TENDA (K4W-3TC) 4 Channel Wireless HD Video Security Kit
