Startech Rackmount Kvm Console - 1u - 19in Display - Single Port Kvm - Rack Mount Monitor - Rackmount
QUICK OVERVIEW
Overview

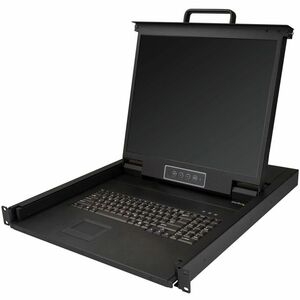

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| PRODUCT NUMBERS | ||
|---|---|---|
| Ingram Micro Canada | 3355MD | |
| Tech Data Canada | 0R1943 | |
| Synnex Canada | 6088743 | |
| ASI Distribution Canada | 217041 | |
| DandH Canada | RKCONS1901CA | |
| UPC Code | 065030872492 | |
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 2 Years | |
| HARDWARE | ||
| Audio | No | |
| Cables Included | Yes | |
| Daisy-Chain | Yes | |
| Display Size | 19in | |
| Front Door Key Lock | No | |
| KVM Ports | 1 | |
| Number of Monitors Supported | 1 | |
| Panel Type | Active Matrix TFT LCD | |
| PC Interface | USB | |
| PC Video Type | VGA | |
| Rack-Mountable | Yes | |
| U Height | 1U | |
| PERFORMANCE | ||
| Brightness | 250 cd/m² | |
| Color Depth | 8-bit, 16.7M colors | |
| Contrast Ratio | 1000:1 | |
| IP Control | No | |
| Maximum Analog Resolutions | 1280 x 1024 | |
| Maximum Number of Users | 1 | |
| MTBF | 50, 000 Hrs | |
| Pixel Pitch Support | 0.264 x 0.264 mm | |
| Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1280 x 1024 Lower resolutions are also supported | |
| CONNECTOR(S) | ||
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) Female Input | |
| INDICATORS | ||
| LED Indicators | 1 - power / status LED | |
| POWER | ||
| Power Consumption (In Watts) | 17W | |
| ENVIRONMENTAL | ||
| Humidity | 10 ~ 80% RH | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| PHYSICAL CHARACTERISTICS | ||
| Maximum Mounting Depth | 30.7 in [78 cm] | |
| Minimum Mounting Depth | 19.7 in [50 cm] | |
| Product Height | 1.7 in [43 mm] | |
| Product Length | 21 in [53.3 cm] | |
| Product Weight | 27 lb [12.2 kg] | |
| Product Width | 19 in [48.3 cm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 35.4 lb [16 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - KVM console | |
| 1 - KVM cable | ||
| 8 - M5 cage nuts | ||
| 8 - M5 screws | ||
| 5 - regional power cords (NA, JP, UK, EU, ANZ) | ||
| 12 - mounting rails (variable length) | ||
| 1 - quick-start guide | ||
