Startech Kvm Console To Usb 2.0 Portable Laptop Crash Cart Adapter - Laptop Kvm Server Console
SKU
237236
Brand
MPN
NOTECONS01
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$765.00
Buy Now And Earn 765 Reward Points!
QUICK OVERVIEW
Adapter NOTECONS01

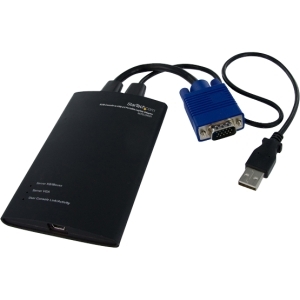

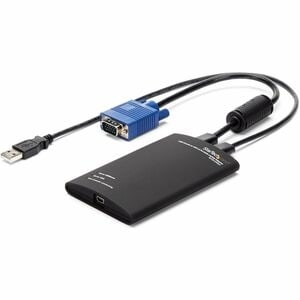

StarTech.com KVM Console to USB 2.0 Portable Laptop Crash Cart Adapter
| Turn any laptop into a console for headless servers, PCs, ATMs, kiosks and more | .jpg) |
With portability for the mobile administrator or repair technician in mind, this USB-powered adapter features a small-footprint design that requires no additional accessories to connect to most servers, and requires no server-side software installation. Plus, the pocket-sized adapter draws its power from the server-side USB connections, allowing the laptop/netbook to last longer without consuming battery power.
Ensuring full control of the connected units, the Laptop KVM Server Console Adapter provides immediate access to the POST screen and BIOS, plus the ability to handle full configuration of the attached PC or machine; administrators can connect to a headless server/device without the need of an expensive LCD rackmount console or bulky monitor, keyboard and mouse solution.
- Ultra high resolution support up to 1920 x 1200 @ 60Hz
- Multi-platform support USB and PS/2 to the server or KVM (PS/2 for Keyboard Only)
- Upgradable Firmware
- LED indicators for USB link, Host Video link, and Host Keyboard/Mouse Link
- Manual video adjustments to control the picture position, sharpness and image noise for optimal performance settings
- Snapshot feature allows you to capture screen shots of your server, error messages, and activity
- Pre-loaded special key commands
- Keyboard emulation support for USB, PS/2 and SUN systems
- Auto image centering adjustment for 4x3 images on a wide screen display
- Automatic video scaling when resizing the viewing pane from the console PC (laptop) for immediate, automatic compatibility
- Manual video override adjustments allows it to work with legacy and industrial devices
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Console Interface(s) | USB Mini-B (5 pin) Female Input |
| Host Connectors | PS/2 (6 pin, Mini-DIN) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| VGA (15 pin, High Density D-Sub) Male | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 1 |
| Number of Monitors Supported | 1 |
| PC Interface | USB and PS/2 |
| PC Video Type | VGA |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Host/Server Keyboard/Mouse (USB,PS/2) Link |
| Host/Server Video (VGA) Link | |
| User Console/USB Link | |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Hot-Key Selection | No |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1200 @ 60Hz |
| Maximum Number of Users | 1 |
| MTBF | 284000 Hrs |
| On-Screen Display | No |
| Physical Characteristics | |
| Cable Length | 1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable |
| Color | Black |
| Enclosure Type | Plastic |
| Product Depth | 115 mm [4.5 in] |
| Product Height | 15 mm [0.6 in] |
| Product Weight | 170 g [6 oz] |
| Product Width | 74 mm [2.9 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2016 Mac OS? 10.6 to 10.9 Linux 2.6.x to 4.11.x (LTS Versions Only) |
| Special Notes / Requirements | |
| Note | If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration |
| What's in the Box | |
| Included in Package | USB Cable |
| USB PS/2 KVM Console Adapter | |
| USB Software Key | |
| USB to PS/2 Adapter | |
