Startech Displayport Kvm Switch - 4 Port - 4k 60hz - Displayport 1.2 Kvm - Computer Switch Box - SV431DPUA2

SKU
264668
Brand
MPN
SV431DPUA2
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $740.00 Regular Price $851.00
Buy Now And Earn 740 Reward Points!

QUICK OVERVIEW

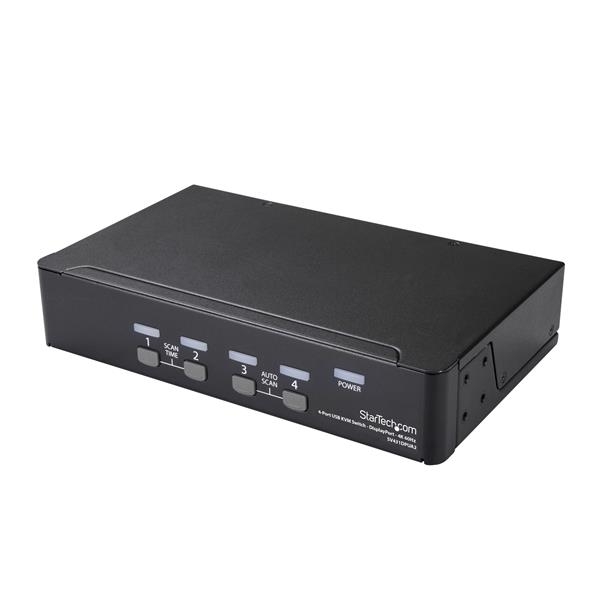

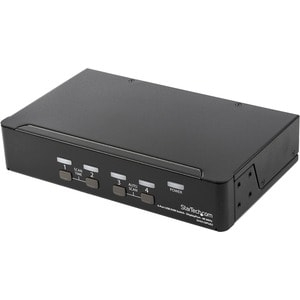

DisplayPort Switch - USB KVM Switch SV431DPUA2

Overview

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.

Connector(s)
Console Interface(s)3.5 mm Mini-Jack (3 Position) Female
DisplayPort (20 pin) Female
USB Type-A (4 pin) USB 2.0 Female
USB Type-A (4 pin; HID Port) USB 1.1 Female
Host Connectors3.5 mm Mini-Jack (3 Position) Female
DisplayPort (20 pin) Female
USB B (4 pin) Female
Environmental
Humidity0% ~ 40%
Operating Temperature0?C to 40?C (32?F to 104?F)
Storage Temperature-10?C to 60?C (14?F to 140?F)
Hardware
AudioYes
Cables IncludedNo
Daisy-ChainNo
KVM Ports4
Number of Monitors Supported1
PC InterfaceUSB
PC Video TypeDisplayPort
Rack-MountableOptional
U Height1U
Indicators
LED IndicatorsGreen - Online indicator (One LED per port)
Power
Red - Select indicator (One LED per port)
Packaging Information
Shipping (Package) Weight1605 g [56.7 oz]
Performance
Auto Scan3, 8, 15 & 30 seconds
Hot-Key SelectionYes
IP ControlNo
Maximum Data Transfer Rate480 Mbps (USB 2.0)
Maximum Digital Resolutions3840 x 2160 (Ultra HD 4K) @ 60hz
Maximum Number of Users1
On-Screen DisplayNo
Port Selection SupportPush Button and Hotkeys
Wide Screen SupportedYes
Physical Characteristics
ColorBlack
Enclosure TypeSteel
Product Height45 mm [1.8 in]
Product Length220 mm [8.7 in]
Product Weight1042 g [36.8 oz]
Product Width131 mm [5.2 in]
Power
Center Tip PolarityPositive
Input Current0.6 A
Input Voltage100 ~ 240 AC
Output Current1.5 A
Output Voltage12 DC
Plug TypeM
Power Consumption (In Watts)18 W
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent: No software or drivers required
What's in the Box
Included in Packagefoot pads
KVM switch
quick-start guide
universal power adapter (NA/JP, EU, UK, ANZ)
