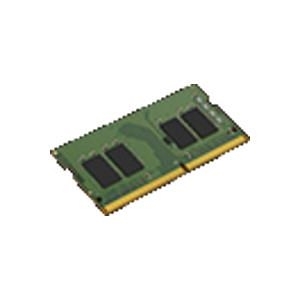

Kingston 8GB DDR4-3200MHz Non-ECC CL22 SODIMM 1Rx8 KVR32S22S8/8
SKU
370021
Brand
MPN
KVR32S22S8/8
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$40.00
Buy Now And Earn 40 Reward Points!
This document describes ValueRAMs KVR32S22S8/8 is a 1G x 64-bit
(8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC,
memory module, based on eight 1G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR4-3200 timing of
22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
Guides & Documents
Physical Characteristics
| Number of Pins | 260-pin |
| Thickness | 3.7 mm |
| Form Factor | SoDIMM |
| Length | 69.6 mm |
| Width | 30 mm |
General Information
| Product Type | RAM Module |
| Manufacturer Part Number | KVR32S22S8/8 |
| Manufacturer Website Address | http://www.kingston.com |
| Manufacturer | Kingston Technology Company |
| Product Name | ValueRAM 8GB DDR4 SDRAM Memory Module |
| Product Line | ValueRAM |
| Brand Name | Kingston |
Technical Information
| CAS Latency | CL22 |
| Error Checking | Non-ECC |
| Signal Processing | Unbuffered |
| Memory Speed | 3200 MHz |
| Memory Size | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Memory Voltage | 1.20 V |
