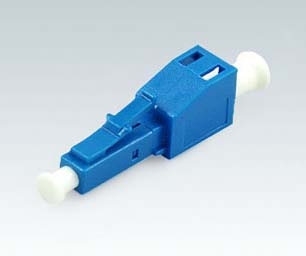

LC SM M to F/M Attenuator 5dB

Our LC fiber optic attenuators can provide a stable attenuation from 1 to 20dB at both 1310nm and 1550nm transmission windows. The plug type of this attenuator is male-to-female. Our LC fiber optic attenuator features excellent performance and is compliant with IEC 60869-1 and is fully compatible with all LC/UPC connectors and
adaptors.

Specifications:
Characteristics : Single-mode (9/125μm)
Operating Wavelength : 860, 1310nm, 1550nm
Return loss (UPC) : ≥ 55dB
Attenuation Accuracy : ± 0.5dB
Operating Temperature : -20 - +75°C
Storage Temperature : -40 - +75°C
Mating Durability : ≥ 1000 cycle
Body Dimension(mm) L x W x H : 28.65 x 6.3 x 10.5
Compliances and Standards:

The performance of the attenuator has been carefully designed to meet the toughest Telcordia standards

GR-326-CORE
RoHS-Complance of item and package
Performance according to IEC
WARRANTY

1-year limited warranty
