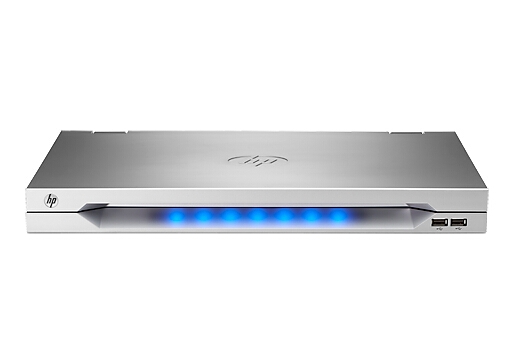

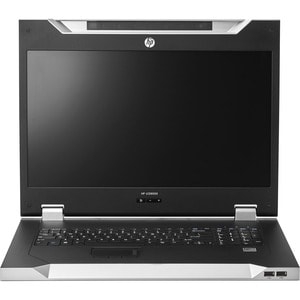

Hp Lcd 8500 1u Console Intl Kit Af644a
- Need a console with the latest in KVM technology to manage the servers in your rack? Knowledge is power – know what’s going on right at the rack with HPE KVM. HPE KVM Console Kits provides high-performance display panel and keyboard with touch pad in a 1U form factor.
The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. The HPE LCD8500 with 18.5-inch WXGA TFT LCD Brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates.
The LCD8500 features a silver enclosure making identification in the rack easier. The integrated keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys.
Also included, is a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
Features
Ultra-Dense, High-Performance KVM Console Display and Keyboard
-
HPE KVM Console Kits combine the rack display panel and keyboard with touch pad in a 1U form factor that allows you to mount a KVM console switch directly behind it saving you space.
-
Features an 18.5-inch WXGA TFT LCD Brightview display that supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.
-
Active Matrix TFT LCD display guarantees a flicker-free picture that is sharper in focus than a CRT monitor.
-
Includes two (2) front side USB pass-through ports for use with KVM Console Switches that support virtual media.
Advanced, Ergonomic Design
-
HPE KVM Console Kits feature a new silver colored enclosure making identification in the rack much easier.
-
Includes a three-button touch pad, four (4) scroll keys, and Windows shortcut keys.
-
Lid Switch display management feature shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
-
Tool-less rails for rack installation are included with each console kit allowing for quick and easy installation within minutes.
| Marketing Text | HP KVM Console Kits provide ultra-dense, high-performance KVM consoles that combine both the rack display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it. |
| PI Date | Mar 2016 |
| Brand Name | HP |
| Manufacturer Web Site | http://www.hp.com |
| Product Type | Rackmount Console Kit |
| Product Model | LCD8500 |
| Form Factor | 1U |
| Console Connector | 1 x DisplayPort |
| Display Type | LCD |
| Display Size | 18inch |
| Contrast Ratio | 700:1 |
| Maximum Resolution | 1600 x 1200 |
| Brightness | 187NIT |
| Response Time | 16ms |
| Pointing Device | Touchpad |
| Depth (mm) | 433.0 |
| Height (mm) | 42.2 |
| Width (mm) | 436.0 |
| Weight (Kg) | 5.2 |
| Operating Temperature | 0 to 50°C |
| Power | 90 - 264Volt |
| Power Consumption | 36Watt |
| Other Features | * Supported refresh rates: 60 to 75 Hz * Location Discovery Services compatible |
