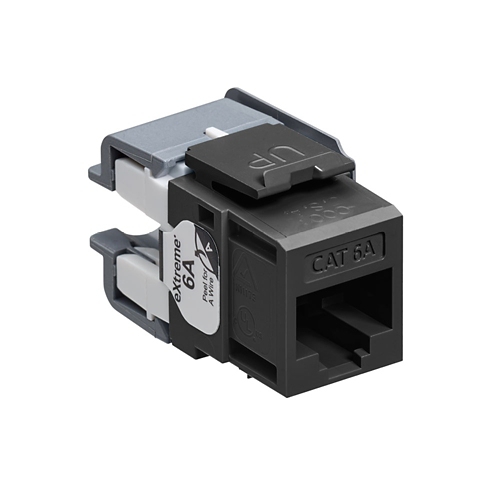

eXtreme™ Cat 6A QUICKPORT™ Unshielded Jack | 110-Style, Channel-Rated | Black

The EXTREME Cat 6A Channel-Rated QUICKPORT jack is designed to be used with all QUICKPORT compatible products and features patented injection-molded Cone of Silence™ covers to eliminate alien crosstalk (AXT). The jack includes patented Retention Force Technology™ to promote consistent network performance over the life of the system. Unique Pair Separation Towers facilitate quick, easy terminations. The jack is configured in a 180-degree configuration such that the punch down field is in the back, allowing for rear termination.

FEATURES
Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
Terminates 26 AWG stranded conductors up to 5 times
Cat 6A/Class EA Channel Performance
Patented Retention Force Technology™ protects against tine damage from 4- or 6-pin plugs
Alien crosstalk suppressed by Cone of Silence, metalized body, and new printed circuit board
Pair Separation Tower (PST) design facilitates separation of Cat 6A conductors
Patented, dual-layer wiring label simplifies punchdown and reduces rework
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
SPECIFICATIONS
Brand: eXtreme
Category Rating: Cat 6A
Colour: Black
Performance: Channel-Rated
Shielding: UTP
PATENTS
CA2611991
CA2715824
ECD147723-0001
EP2315317
GB2315317
GB2562884
MX249737
MX295578
MX297837
TWI285985
US6786776
US7273396
US7547227
US7967645
US7980890
This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.
WARRANTY

1-year limited warranty
