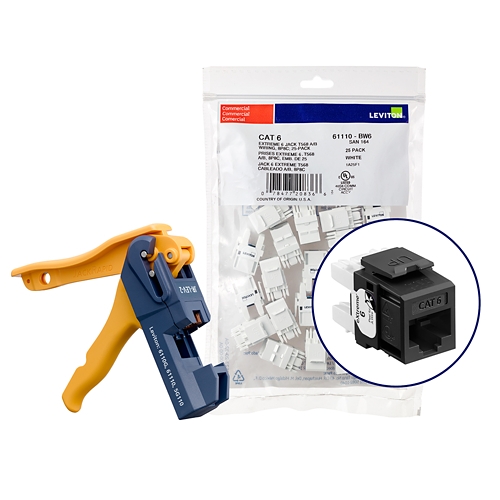

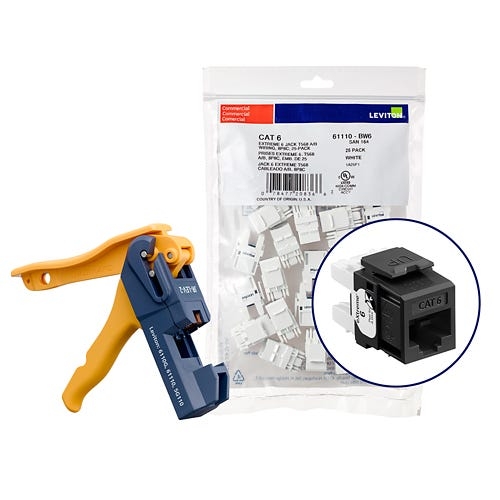

eXtreme™ Cat 6 QUICKPORT™ Unshielded Jack | 110-Style with Tool | 150 Pack Black

The EXTREME Category 6 jack is designed to be used with all QUICKPORT compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.

FEATURES
Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
Terminates 26 AWG stranded conductors up to 5 times
Capable of multiple re-terminations
Gas-tight IDC jacks prevent corrosion
Dual-layer T568B/T568A wiring label simplifies punchdown
Patented Retention Force Technology™ protects tines from damage and increases system longevity
Pair Separation Tower design facilitates separation of conductors and minimises untwisting
180-degree configuration allows for rear termination
Available in 13 ANSI/TIA-606-C compatible colours for colour coding or organisation
Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
Select colours available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
SPECIFICATIONS
Brand: eXtreme
Category Rating: Cat 6
Colour: Black
Shielding: UTP
PATENTS
CD147723-0001
MX249737
TWI285985
US6786776
US7547227

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.

WARRANTY

1-year limited warranty
