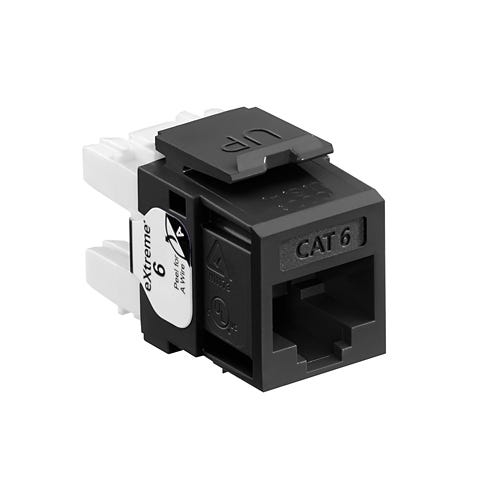

eXtreme™ Cat 6 QUICKPORT™ Unshielded Jack | 110-Style | Black

The EXTREME Category 6 jack is designed to be used with all QUICKPORT compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.

FEATURES
Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
Terminates 26 AWG stranded conductors up to 5 times
Capable of multiple re-terminations
Gas-tight IDC jacks prevent corrosion
Dual-layer T568B/T568A wiring label simplifies punchdown
Patented Retention Force Technology™ protects tines from damage and increases system longevity
Pair Separation Tower design facilitates separation of conductors and minimises untwisting
180-degree configuration allows for rear termination
Available in 13 ANSI/TIA-606-C compatible colours for colour coding or organisation
Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
Select colours available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
SPECIFICATIONS

Standards and Certifications

CSA: Certified
FCC: Part 68 Compliant
NEC: Article 800 Compliant
TIA/EIA: TIA-568-B
UL: cULus Listed

Mechanical Specifications

Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
Connector Feature: Channel/Component Rated
Position / Conductor: 8P8C
Product ID: Permanently laser-engraved
Style Name: eXtreme
Termination Type: 110 Punchdown
Wiring Standard: T568A T568B

Material Specifications

Body Colour: Black
Body Material: High-Impact Fire-Retardant Plastic
Contact Base Material: Phosphor Bronze
Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
Contact Surface Material: 50 microinches thick Gold-Plated

Product Features

Body Colour: Black
Brand: eXtreme
Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6
Category Rating: Cat 6
Colour: Black
Connector Feature: Channel/Component Rated
Contact Base Material: Phosphor Bronze
Contact Sub-Surface Material: 100 microinches thick Nickel-Plated
Contact Surface Material: 50 microinches thick Gold-Plated
Flammability: Rated V-0 per UL 94
Module Style: Connector
Module Type: Category 6
Packaging: Single Pack 1/bag
Position / Conductor: 8P8C
Shielding: UTP
Standards and Certifications: TIA/EIA cULus Listed
Termination Type: 110 Punchdown
PATENTS
ECD147723-0001
GB2562884
MX249737
MX295578
TWI285985
US6786776
US7547227
US7980890

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.

WARRANTY

1-year limited warranty
