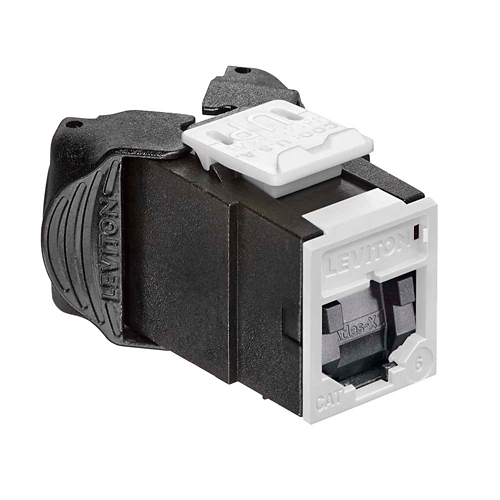

Atlas-X1™ Cat 6 UTP QUICKPORT™ Jack with Shutters Tool Free | White

ATLAS-X1 Cat 6 Component-Rated UTP QUICKPORT Jacks support 1000BASE-T networks. The jack is part of a complete ATLAS-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.

FEATURES
Independently tested and guaranteed to exceed all component, permanent link, and channel margins
Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity
For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects
Unique design supports tool-free termination/re-termination and requires no specialised termination tool
Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity
Available in 13 ANSI/TIA-606-C compatible colours
Select jacks available with interchangeable icons (voice, data, A/V, and blank, colour coded to match the jack face), for easy identification and tracking of data, voice, or other functions
Jack with internal shutter protects against dust and debris
Solid metal body dissipates 53% more heat than traditional plastic, minimising damage from excess heat in PoE applications
Tine geometry prevents arcing damage where plug and jack make contact
Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously
ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications
SPECIFICATIONS
Brand: Atlas-X1
Category Rating: Cat 6
Colour: White
Shielding: UTP
PATENTS
US9496644
GB2562884
EP3132510
EP3363082
US10371902
US10151890
US9627827
US9515437
MX385657

This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.

WARRANTY

1-year limited warranty
